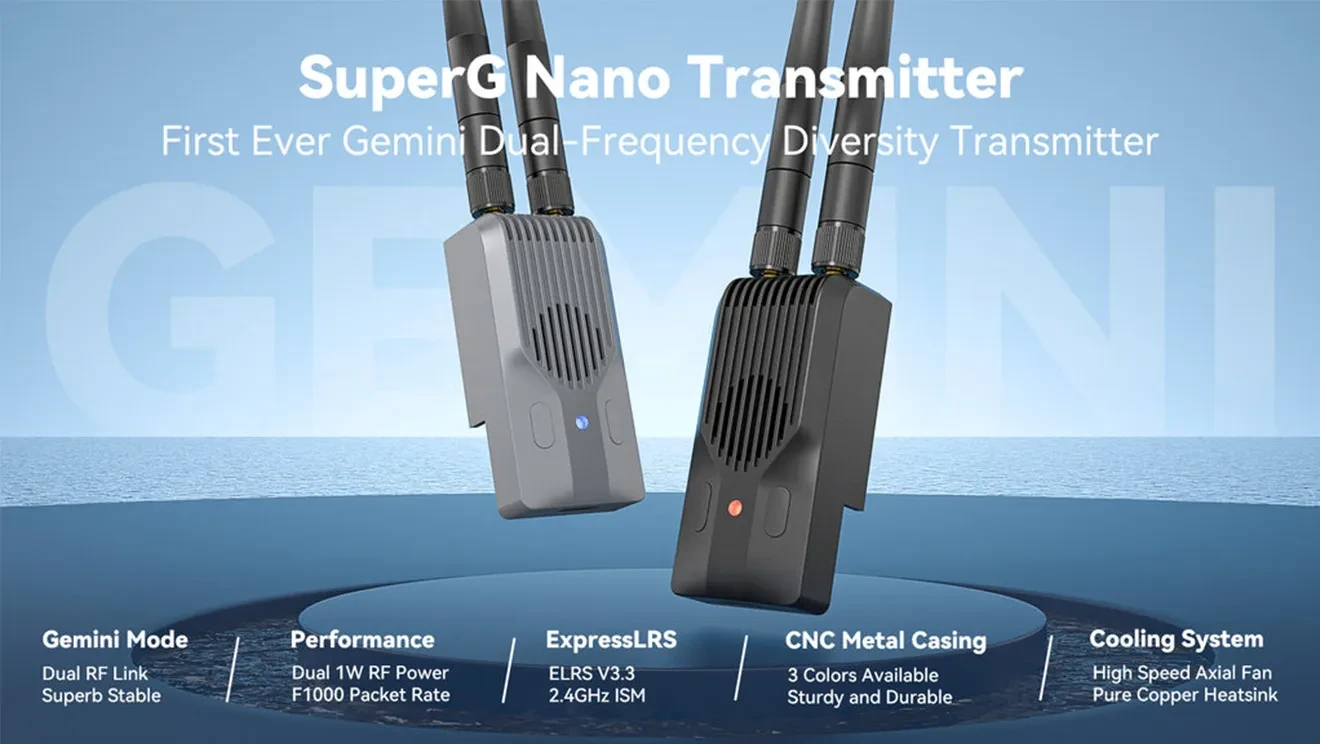

NEWBetaFPV SuperG Nano Transmitter

About SuperG Nano Transmitter

Based on ELRS V3.3 and collaborated with ELRS developer team, the First Ever Gemini Dual-Frequency Diversity Transmitter comes out! At present, SuperG Nano Transmitter can be fully activated to achieve the best link quality ever combined with diversity rx such as SuperD receiver or SuperP receiver. With dual 1W transmit power, it excels in anti-interference performance and stability, making it the ideal solution for demanding applications like FPV racing, long-range flight, and professional photography.

Sales：0Pcs
$67.99
$79.99
-15%

●Introducing the pioneering Gemini Dual-Frequency Diversity Transmitter, propelling ELRS into the era of dual-frequency capabilities.

●Dual 1W transmit power experienced amplified signal strength, expanded transmission distances, and a substantial increase in remote control range.

●In conjunction with existing true diversity receivers, activating the Gemini mode ensures unwavering signal stability even in the most intricate radio environments.

●Meticulously crafted from CNC aluminum alloy, the transmitter casing facilitates efficient thermal conductivity, complemented by an intelligently designed Heatsink system for optimal heat dissipation.

●Featuring 2 customizable buttons and 1 USB port, the transmitter accommodates external power sources, enabling steadfast long-range expeditions.



Learn more
MEPSKING new arrivals sales event buy more get more
Options (1)
betafpv transmitter
SuperG Nano
Quantity
For bulk purchase inquiries, please contact us freely.
Inquire
In Stock Expected ship within 5 days after order.
Free Shipping | For order over $99
2 Years Warranty | Hassle-free 24-month warranty
Easy Return and Exchange | Return within 30 days
Professional Support | 24-hour response
Payment | Every order you place with us is safe & secure
Share
Copy
betafpv-superg-nano-transmitter
betafpv superg nano transmitter stepping

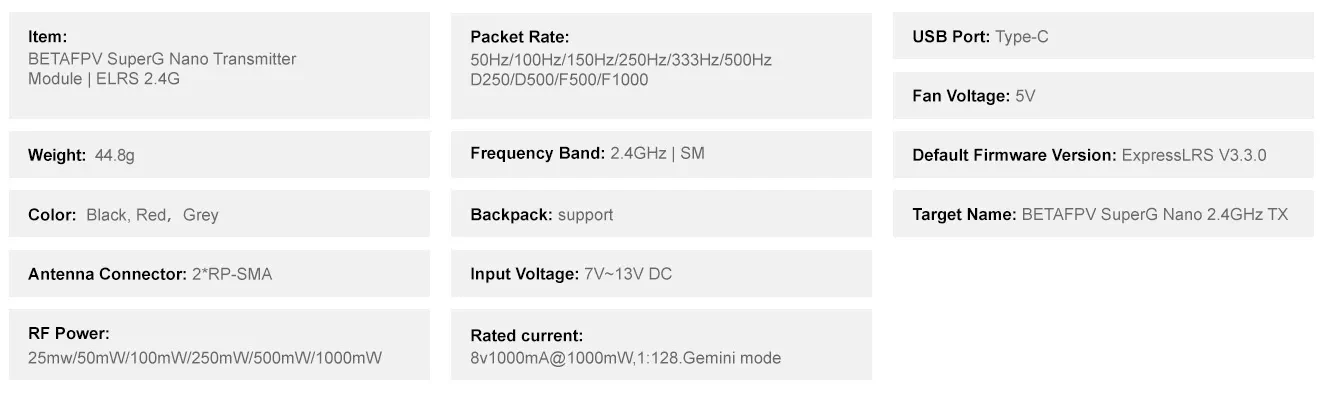

Specification

betafpv superg nano transmitter feature

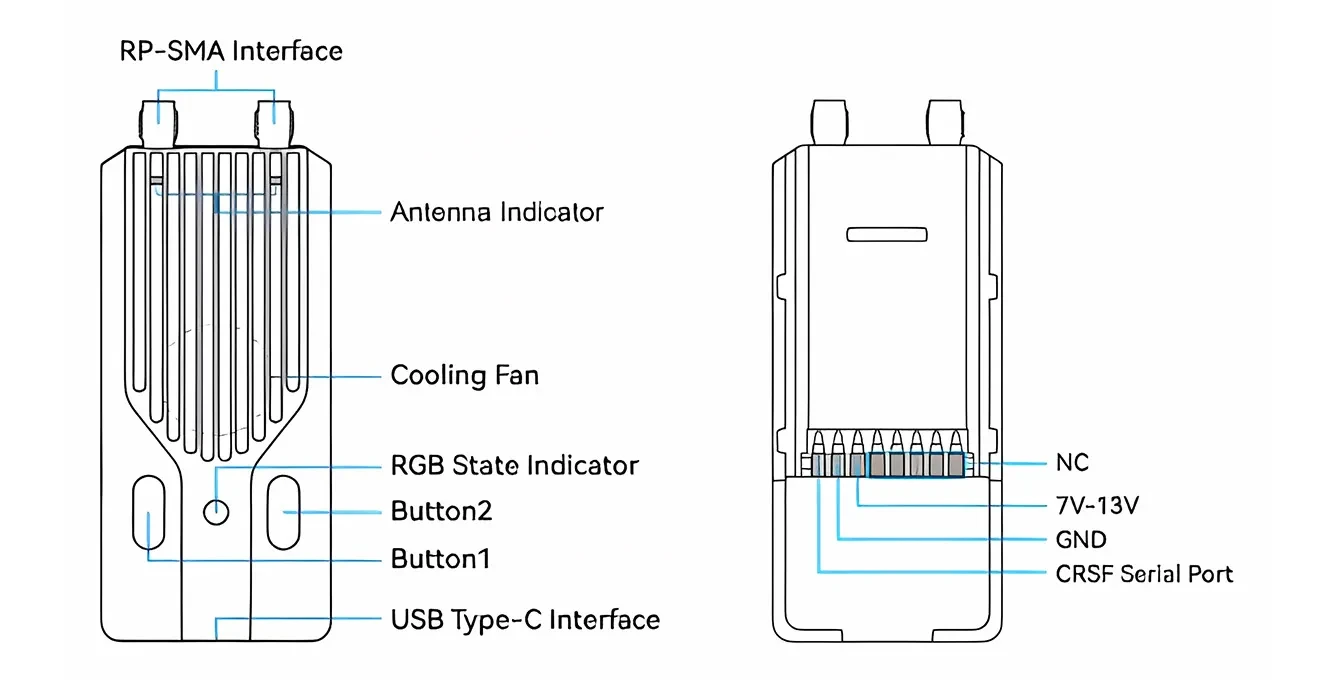

Diagram

Below is the diagram for the SuperG Nano Transmitter.

Note: Please assemble the antenna before powering on. Otherwise, the PA chip in the SuperG Nano Transmitter will be damaged permanently.

The following is the comparison information of the 3 products SuperG Nano Transmitter, ELRS Nano TX Module and ELRS Micro TX Module. It shows the advancing updates and specifications more than ever.

betafpv superg nano transmitter size

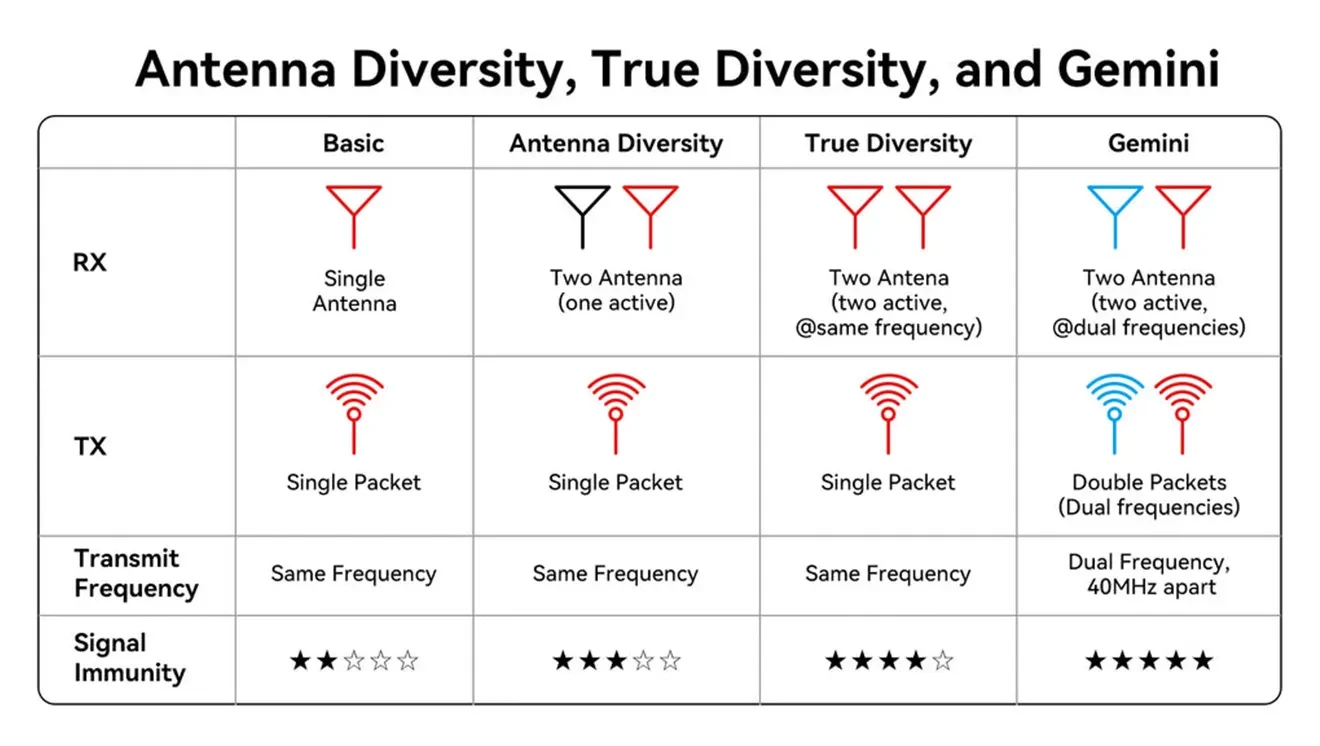

Know More About Diversity&Gemini

Antenna Diversity mode, two antennas. Switch the two antennas regularly to read the RSSI value of the signal and determine which antenna to use to receive data.

True Diversity mode, where both antennas receive data at the same frequency, and the antenna that receives the correct data first is used.

Gemini mode, where two antennas simultaneously receive telemetry data with a frequency difference of 40MHz. They also transmit data simultaneously but at different frequencies. This means that you can receive the same data packets on different frequencies and antennas. This mode provides stable flight even in complex radio environments.

Among them, Gemini is the most advanced function yet of ExpressLRS - Gemini mode currently! It owns the most stable mode for receiving signals and offers higher resistance to interference and stability, making it suitable for various applications.

SuperG Nano Transmitter features Gemini mode. In a testing video by developer Jye Smith, it is shown that with a refresh rate of 1000Hz, the LQ value fluctuates between 90-100 when the true diversity receiver is in operation. However, after switching to Gemini mode, the LQ value stabilizes at 99-100. This demonstrates that ELRS goes to great lengths to ensure link stability.

betafpv superg nano transmitter antenna

Combination with Diversity RX

Gemini mode is built upon the hardware foundation of true diversity receivers and requires a dual RF output high-frequency module. When used with Super series products, the advantages of Gemini mode can be fully utilized. And The effects of using the transmitter and receiver in various modes are as follows:

betafpv superg nano transmitter stable

Using it together with True Diversity Receiver ensures a super stable yet strong radio link for pilots to fly in any environment that require extremely stable signals and low latency. Including long-range flights, multiplayer flights, and FPV racing. It gives pilots a robust and aggressive flight experience.

betafpv superg nano transmitter quality

Dual 1W Output Power

The SuperG Nano Transmitter with Dual-active Antennas@Dual Frequencies, each boasting a powerful 1W transmission power. Experience stronger signals, longer transmission distances, and enhanced remote control range.

betafpv superg nano transmitter power

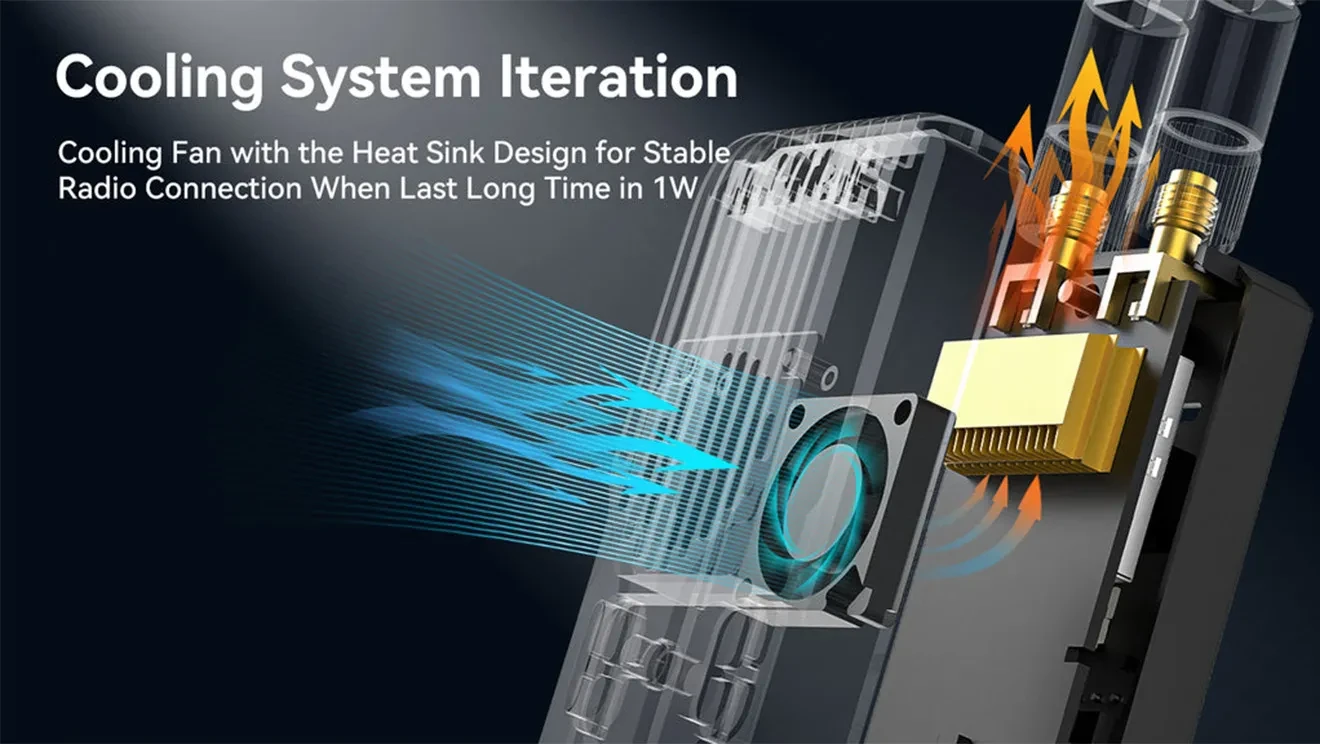

Cooling System Iteration

The casing part is made of CNC aluminum alloy with an anodized surface for durability. It efficiently dissipates heat, thanks to its optimized internal airflow and high-speed fan with copper heat fins. Fly with confidence and enjoy reliable performance every time.

betafpv superg nano transmitter cooling

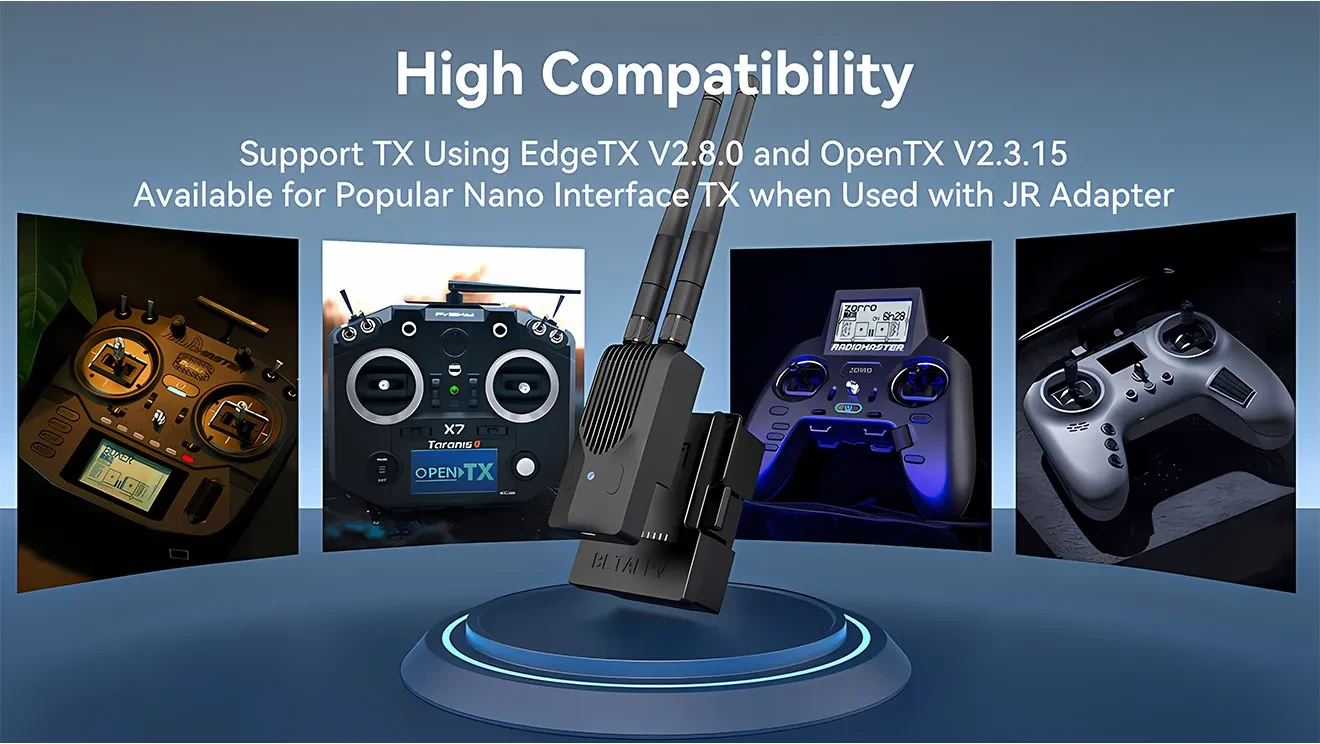

Combination with Most Radio TX

The SuperG Nano Transmitter could be configured via LUA script. EdgeTX and OpenTX radio transmitter that supports CRSF could be used easily. It available for popular Nano interface TX when used with Micro-Nano Module Adapter including Radiomaster TX16, Boxer, Zorro. Jumper T16, T20, T Pro. Frsky QX7, X9, X Lite.

betafpv superg nano transmitter high

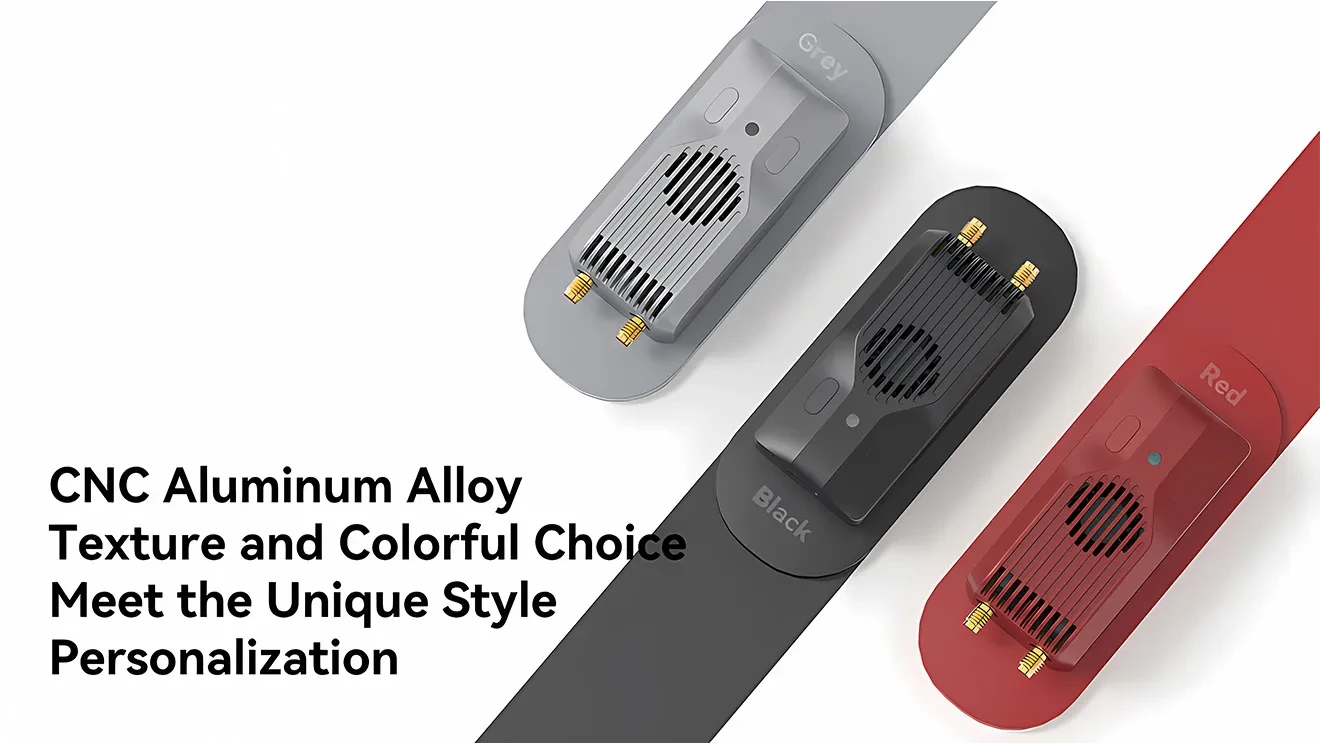

Express Yourself in Vibrant Colors

SuperG Nano Transmitter is a cutting-edge device that offers a distinct and personalized flair, with a range of three vibrant color options including red, grey, and black. The combination of its sleek design, superior functionality, and colorful choices perfectly caters to those who seek elevate style and performance.

betafpv superg nano transmitter cnc

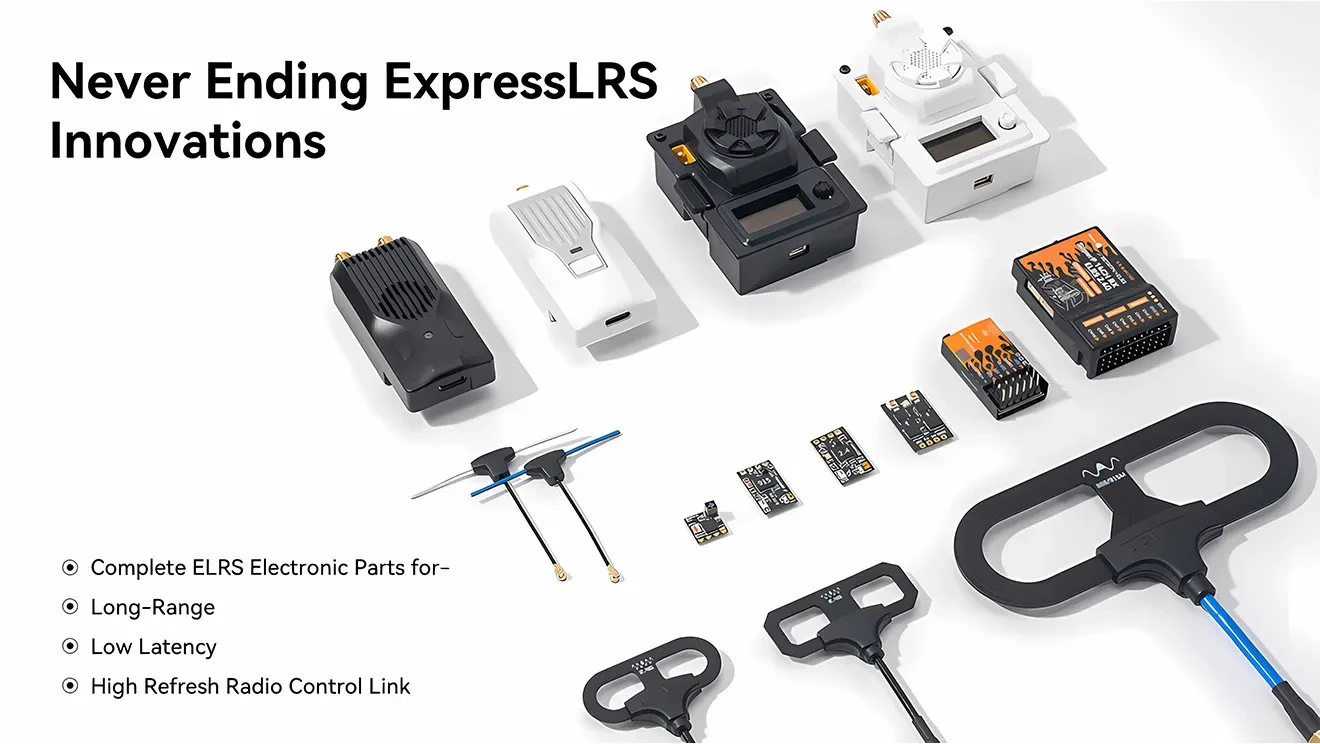

ELRS Series

The ExpressLRS Series expands its lineup with the addition of SuperG Nano Transmitter. To achieve exceptional link quality, pair the Gemini TX with Super series diversity receivers. BETAFPV takes the flying experience to new heights by introducing ELRS links that offer long-range capabilities, low latency, and high refresh rates in a radio control system.

betafpv superg nano transmitter innovations

Basic Configuration

SuperG Nano Transmitter is designed to receive signals using the Crossfire Serial Data Protocol (CRSF). Therefore, the interface of the transmitter's high-frequency module needs to support CRSF signal output. Taking the EdgeTX transmitter system as an example, we will explain how to configure the transmitter to output CRSF signals and control the transmitter using Lua scripts.

In the EdgeTX system, navigate to MODEL SEL and enter the SETUP menu. Disable Internal RF (set to OFF), enable External RF, and set the Output Mode to CRSF, as shown in the picture below.

Lua scripting is a lightweight and compact scripting language that can be embedded in the transmitter for convenient access to and modification of the transmitter's configuration.

Download the elrsV3.lua script from the BETAFPV Support Center or ExpressLRS Configurator.

Copy the official Lua script, elrsV3.lua, to the SD card of the transmitter, under the path Scripts/Tools.

On the EdgeTX system, long-press the SYS button or MENU button to access the SD-HC CARD menu.

In this menu, select the elrsV3.Lua script and run it.

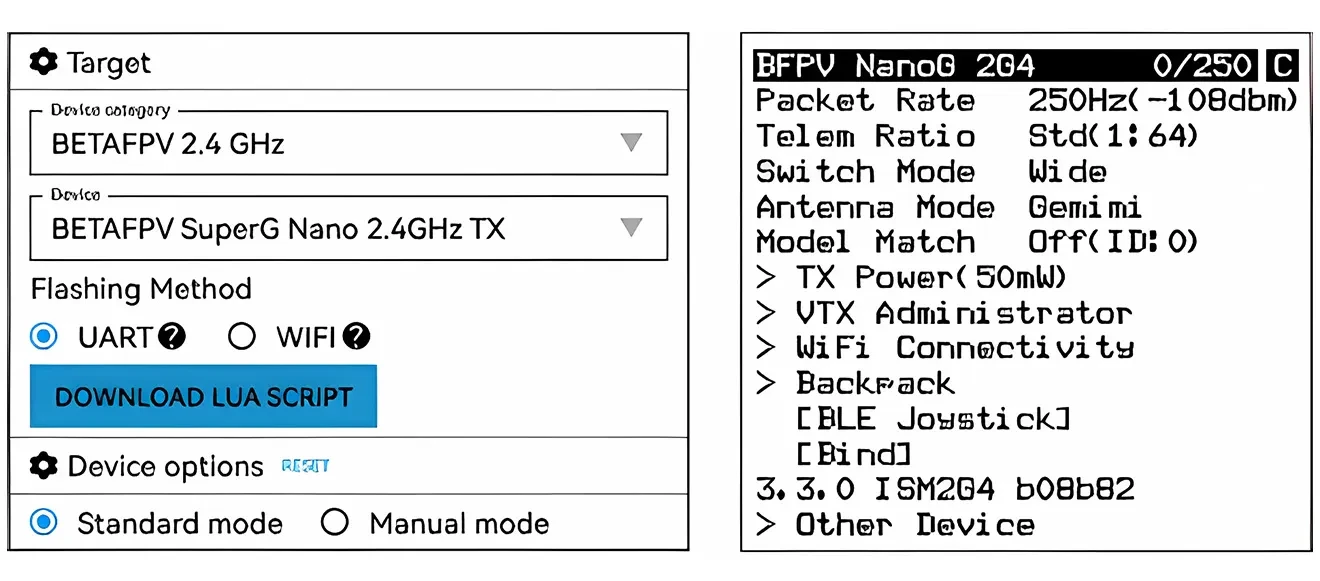

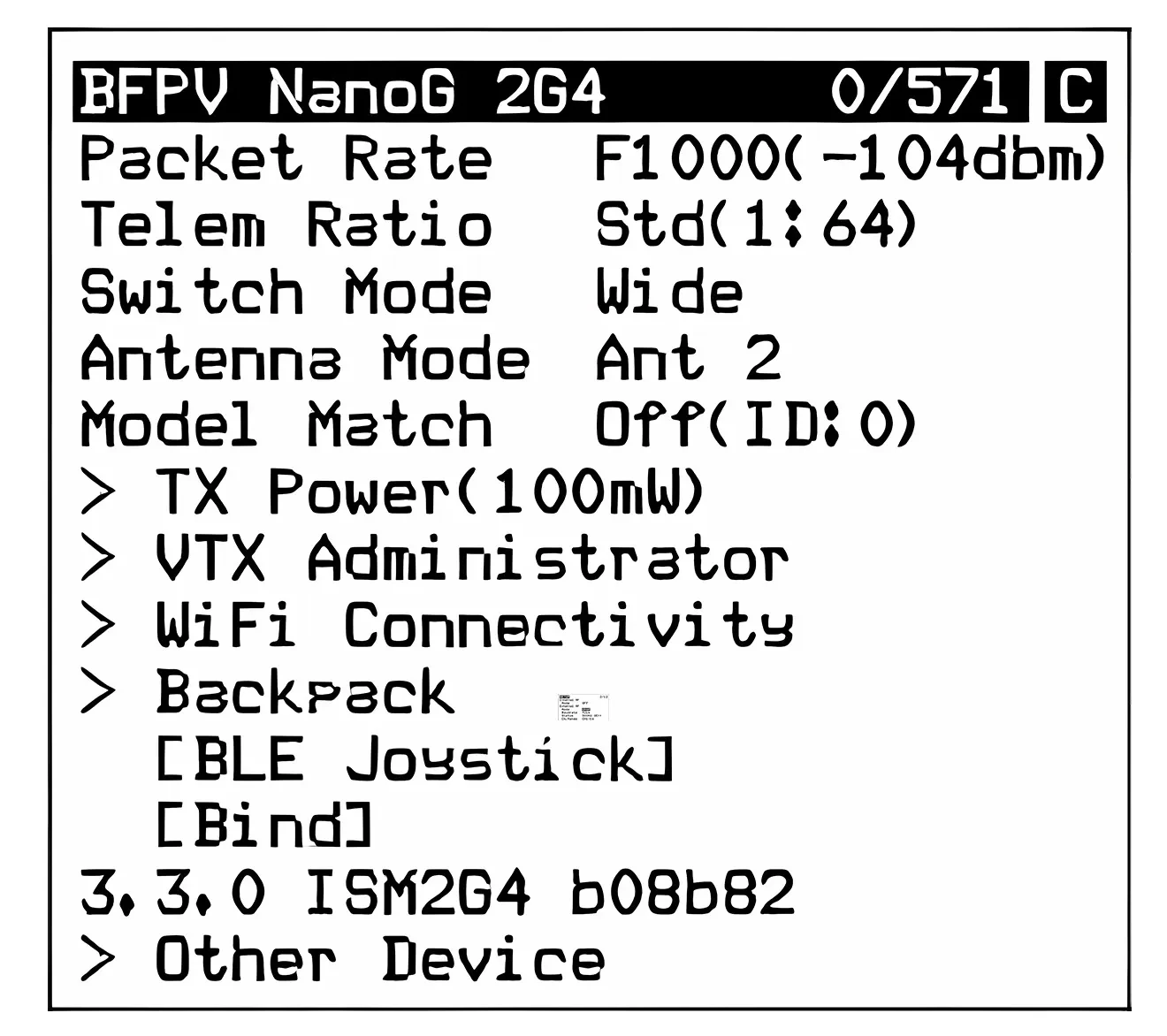

If the Lua script runs successfully, the interface will appear as shown in the illustration below.

betafpv superg nano transmitter para

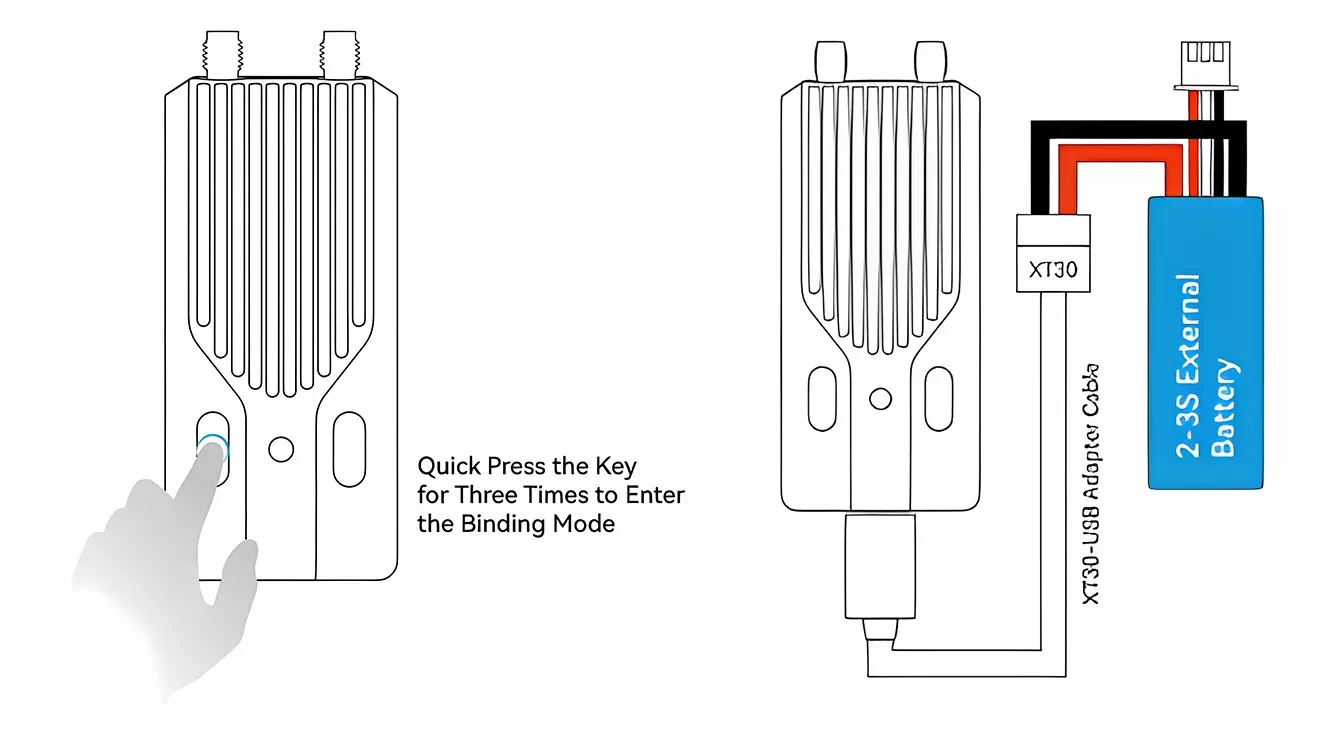

Bind & External Power Supply

The SuperG Nano Transmitter utilizes the default firmware, which employs the ExpressLRS V3.3.0 official protocol without a Binding Phrase. Consequently, the binding receiver should also be equipped with firmware V3.0.0 or higher and have no Binding Phrase set. For optimal performance, it is recommended to position the transmitter's two antennas as far apart as possible.

Put the receiver in a bound state and wait for connection. Click the "Bind" in the Lua script or the set custom button to enter the binding mode. If the Indicator has turned solid, it indicates that the device has been bound successfully.

When the dual transmit power exceeds 500mW, the SuperG Nano Transmitter exhibits relatively high power consumption, leading to a reduced battery life. To prolong the transmitter's usage time, it is advisable to utilize an external battery as a power source.

The power consumption of the transmitter is not only related to the transmit power but also to the telemetry ratio. When using high power of 500mW and above, the return ratio can be set higher to reduce power consumption and extend use time.

For example, in Gemini mode, the power consumption of setting the return ratio to 1:128 is 1000mA, while the power consumption of setting the return ratio to 1:2 is only half of 1:128.

betafpv nano transmitter size

FAQ

When establishing a link, it is not possible to enter the LUA script. The ELRS LUA script version is outdated and requires an upgrade to elrsV3.lua.

The baud rate of the radio transmitter is set below 400K, and it should be adjusted to a value above that. If there is no option to modify the baud rate, it is necessary to update the radio transmitter firmware, ensuring that EdgeTX is at version V2.7.0 or newer.

If your radio transmitter is unable to use the F1000 Packet rate or prompts "Baud rate is too low".

Reason: F1000 requires a baud rate higher than 400K, and the radio transmitter's baud rate is 400K by default.

Solution: First update the baud rate (greater than 400K) setting in the Hardware from the Model Setup menu or System menu, then restart the radio transmitter to ensure the baud rate setting has been applied. Then change the Packet rate.

When the F1000 is turned on, the Packet rate between the radio transmitter and the SuperG Nano Transmitter is less than 1000.

betafpv superg nano transmitter 264

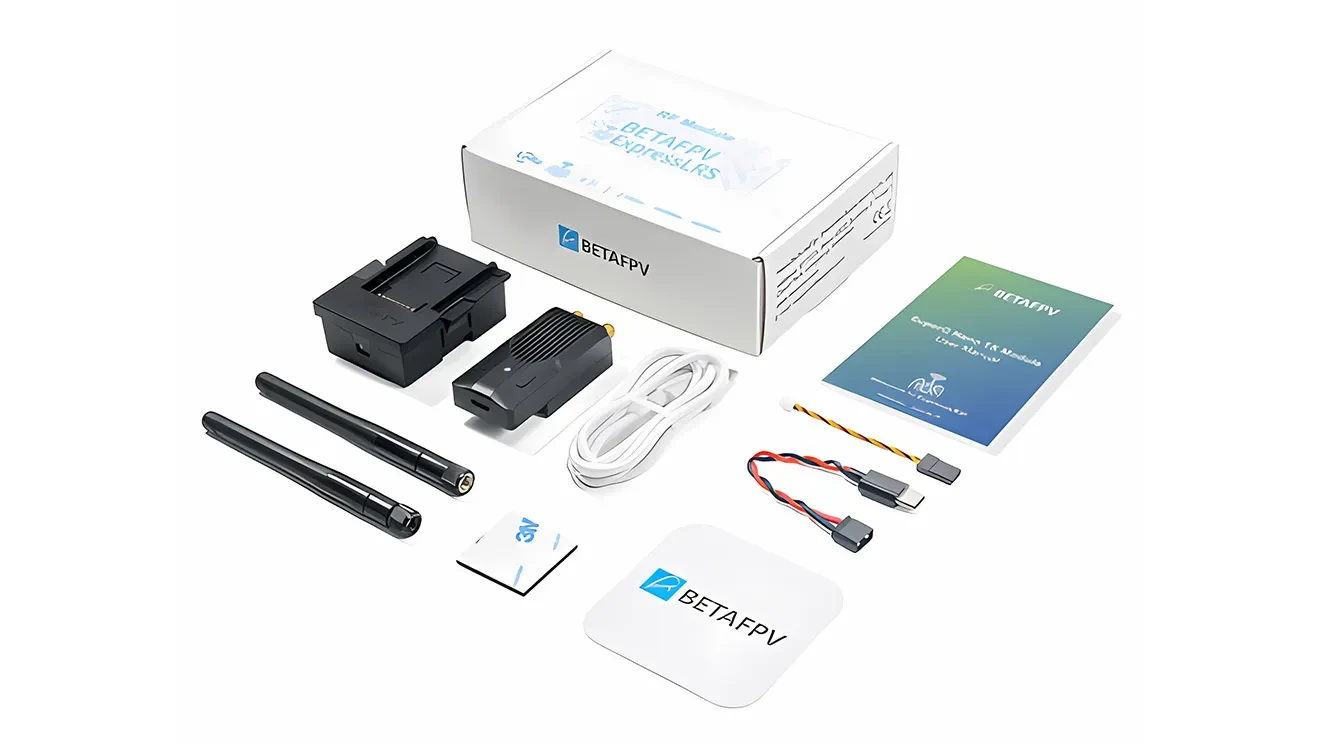

Package

1 * SuperG Nano Transmitter (Black/Red/Grey)

2 * 2.4G Glue Stick Antenna

1 * USB to Type-C Data Cable

1 * Type-C Male to XT30U Male Power Cable

1 * GH1.25 Male to FUTABA Male Signal Cable

1 * Micro-Nano Module Adapter (Standard Version)

1 * Double Side EVA Foam Tape

1 * Instruction Manual

1 * Service Card

betafpv superg nano transmitter package
