GEPRC SPEEDX2 2105.5 2650KV/3450KV Motor for FPV Drone

About GEPRC SPEEDX2 2105.5 Motor:

The GEPRC new generation brushless motor SPEEDX2 2105.5 is an exceedingly innovative brushless motor with an avant-garde style and unique design.


The lightweight design greatly reduces the weight, only 21.0g. The flat motor shape with the exquisite “Hollow out” design in the top of the rotor can be used in improving the efficiency of heat dissipation, the advantage is maintaining a lower temperature for the running motor.


Using customized high-quality materials and professional magnetic circuit design,the SPEEDX2 2105.5 motor with good handling and stably aggressive power. Bringing pilots a super smooth flying experience.


In term of high strength structure design, SPEEDX2 2105.5 also has good durability and crash resistance.It’s a ideal motor for every pilot building their own 3-4 inch FPV quads or 4-5 inch long range FPV quads.


We’ve been pursuing a lighter weight, more responsive, more efficient and more powerful brushless motor.


Sales:0Pcs
$21.99
$27.99
-21%
Coupon Available

● High-quality arc magnetic steel, professional magnetic field design, strong magnetic force, stable motor power output.

● The flat design motor is very prominent in Freestyle & Racing. Large motor torque, strong explosive force, and extremely fast response speed.

● The Exquisite “Hollow out” design in the top of the rotor can be used in improving the efficiency of heat dissipation.

● High-strength motor structure, good durability and crash resistance.

● The 1.5mm shaft is quite suitable for most of the conventional 3-5 inch FPV quad propellers on the market.

Learn more
MEPSKING new arrivals sales event buy more get more
Options (2)
GEPRC SPEEDX2 2105.5 2650KV MOTOR Black Front
2650KV Black
GEPRC SPEEDX2 2105.5 3450KV MOTOR Black Front
3450KV Black
Quantity
In Stock Expected ship within 7 days after order.
Free Shipping | For order over $99
2 Years Warranty | Hassle-free 24-month warranty
Easy Return and Exchange | Return within 30 days
Professional Support | 24-hour response
Payment | Every order you place with us is safe & secure
Share
Copy

Specifications

Item: SPEEDX2 2105.5-2650KV

● KV: 2650KV

● Configuration: 12N14P

● Magnet: N52H ARC

● Stator Diameter: 21mm

● Stator Height: 5.5mm

● Shaft Diameter: ● Φ3.0mm(in)Φ1.5(out)

● Size: Φ25.65mm*15.7mm

● Lead Wires: 22#AWG 150mm

● No. of Cells (LiPo) : 2-6S

● Max Continuous Power(W) (5S): 559

● Max Current (5S) : 34.9A

● Mounting Holes:12mm x 12mm(M2 Screw)

● Color: Black

● Weight: 21.0 g

● Suitable Quadcopter:3-4”whoop FPV, 4-5″Toothpick & Long Range FPV


Item: SPEEDX2 2105.5-3450KV

● KV: 3450KV

● Configuration: 12N14P

● Magnet: N52H ARC

● Stator Diameter: 21mm

● Stator Height: 5.5mm

● Shaft Diameter: Φ3.0mm(in)Φ1.5(out)

● Size: Φ25.65mm*15.7mm

● Lead Wires: 22#AWG 150mm

● No. of Cells (LiPo) : 3-4S

● Max Continuous Power(W) : 558

● Max Current (A) : 34.9A

● Mounting Holes:12mm x 12mm(M2 Screw)

● Color: Black

● Weight: 21.0 g

● Suitable Quadcopter:3-4”whoop FPV, 4-5″Toothpick & Long Range FPV


Feature

1. Lightweight design, only 21.0g.


2. High-quality arc magnetic steel, professional magnetic field design, strong magnetic force, stable motor power output.


3. The flat design motor is very prominent in Freestyle & Racing. Large motor torque, strong explosive force, and extremely fast response speed.


4. Good handling and stable power output bring a super smooth flying experience.


5.The Exquisite “Hollow out” design in the top of the rotor can be used in improving the efficiency of heat dissipation.


6. High-strength motor structure, good durability and crash resistance.


7. The 1.5mm shaft is quite suitable for most of the conventional 3-5 inch FPV quad propellers on the market.


8. Suitable for 3-4 inch FPV quads and 4-5 inch long range FPV quads.


Included

1 x SPEEDX2 2105.5 Motor


5 x M2*6mm Screw


5 x M2*7mm Screw


GEPRC SPEEDX2 2105.5 2650KV/3450KV Motor

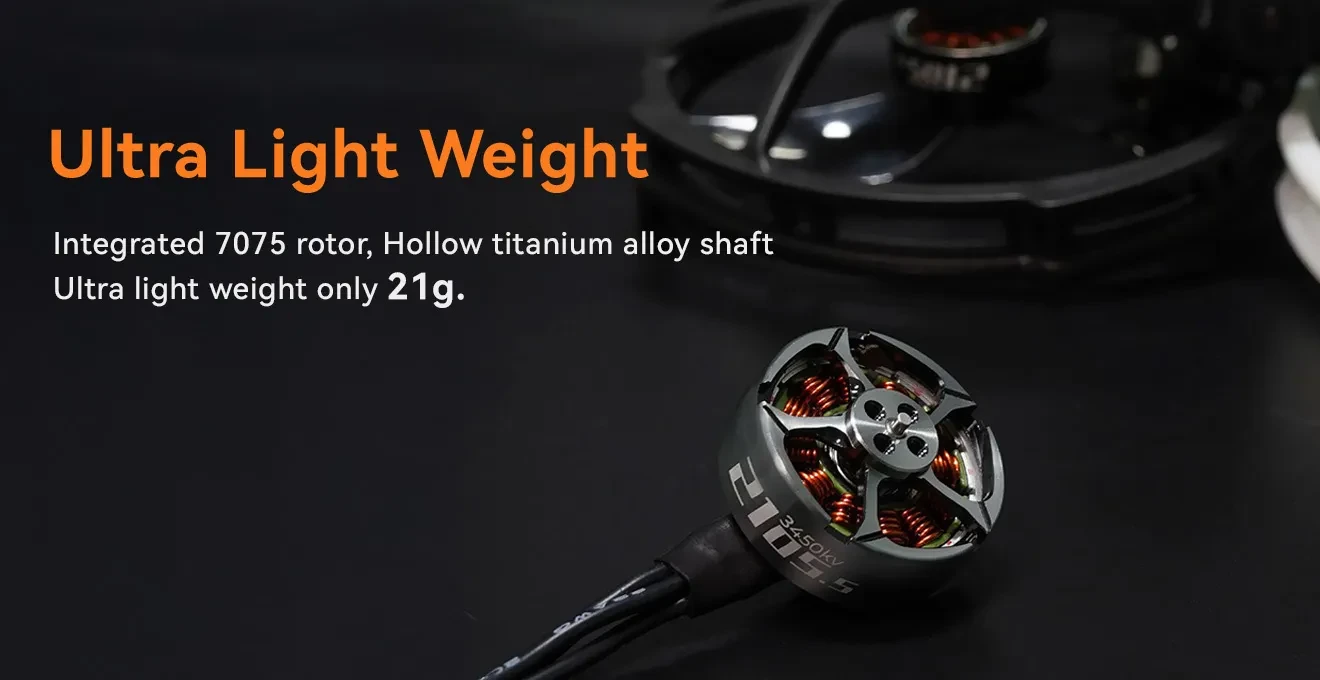

GEPRC SPEEDX2 2105.5 Motor Ultra Light Weight

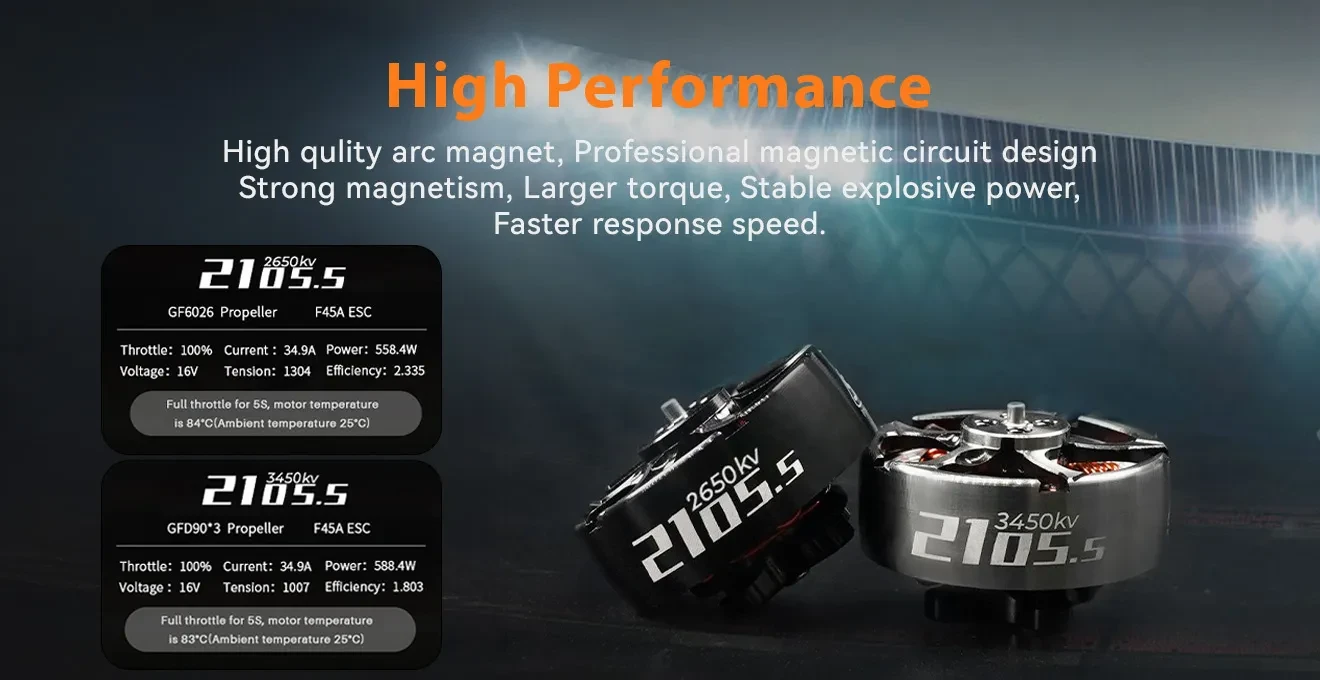

GEPRC SPEEDX2 2105.5 Motor High Performance

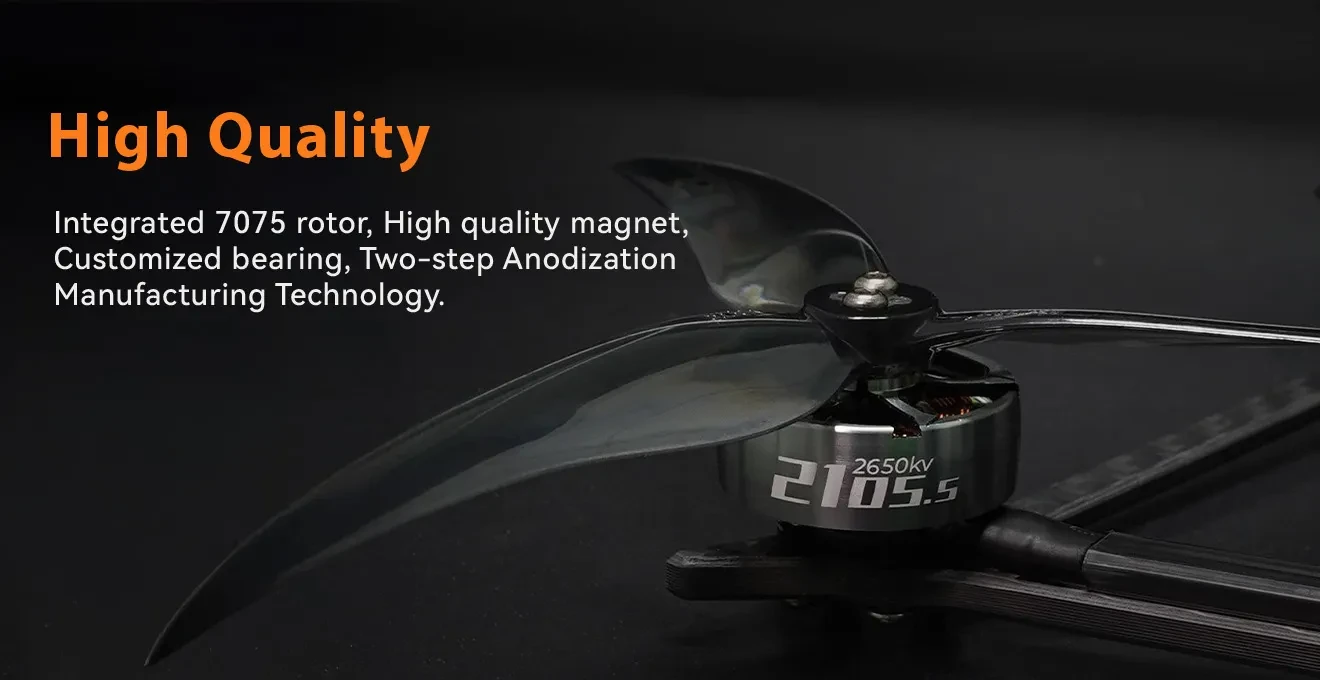

GEPRC SPEEDX2 2105.5 Motor High Quality

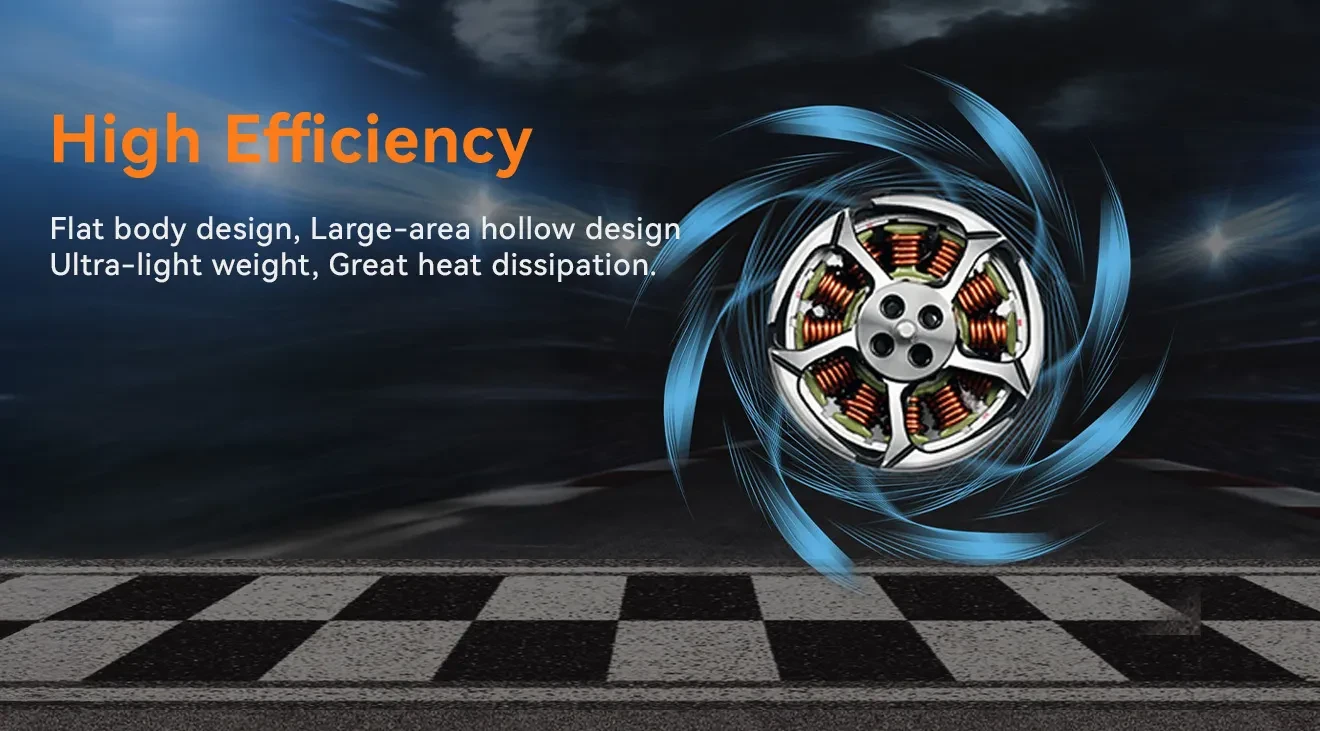

GEPRC SPEEDX2 2105.5 Motor High Efficiency

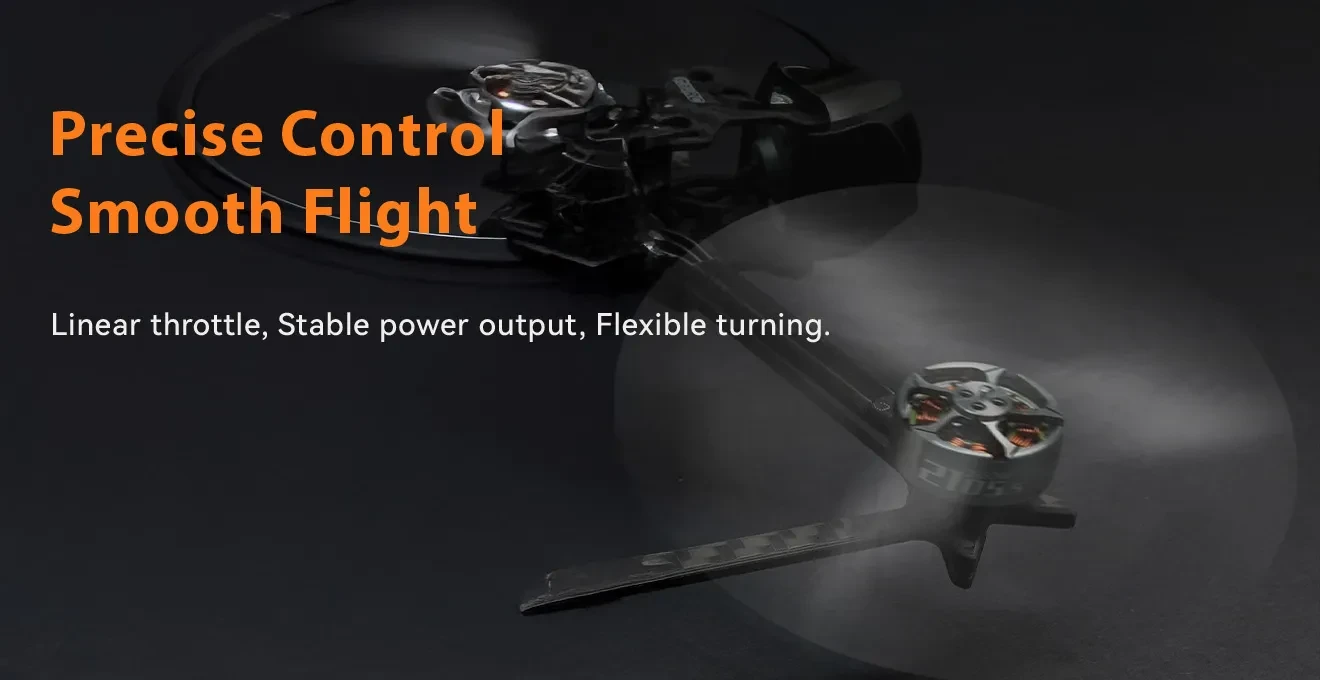

GEPRC SPEEDX2 2105.5 Motor Precise Control

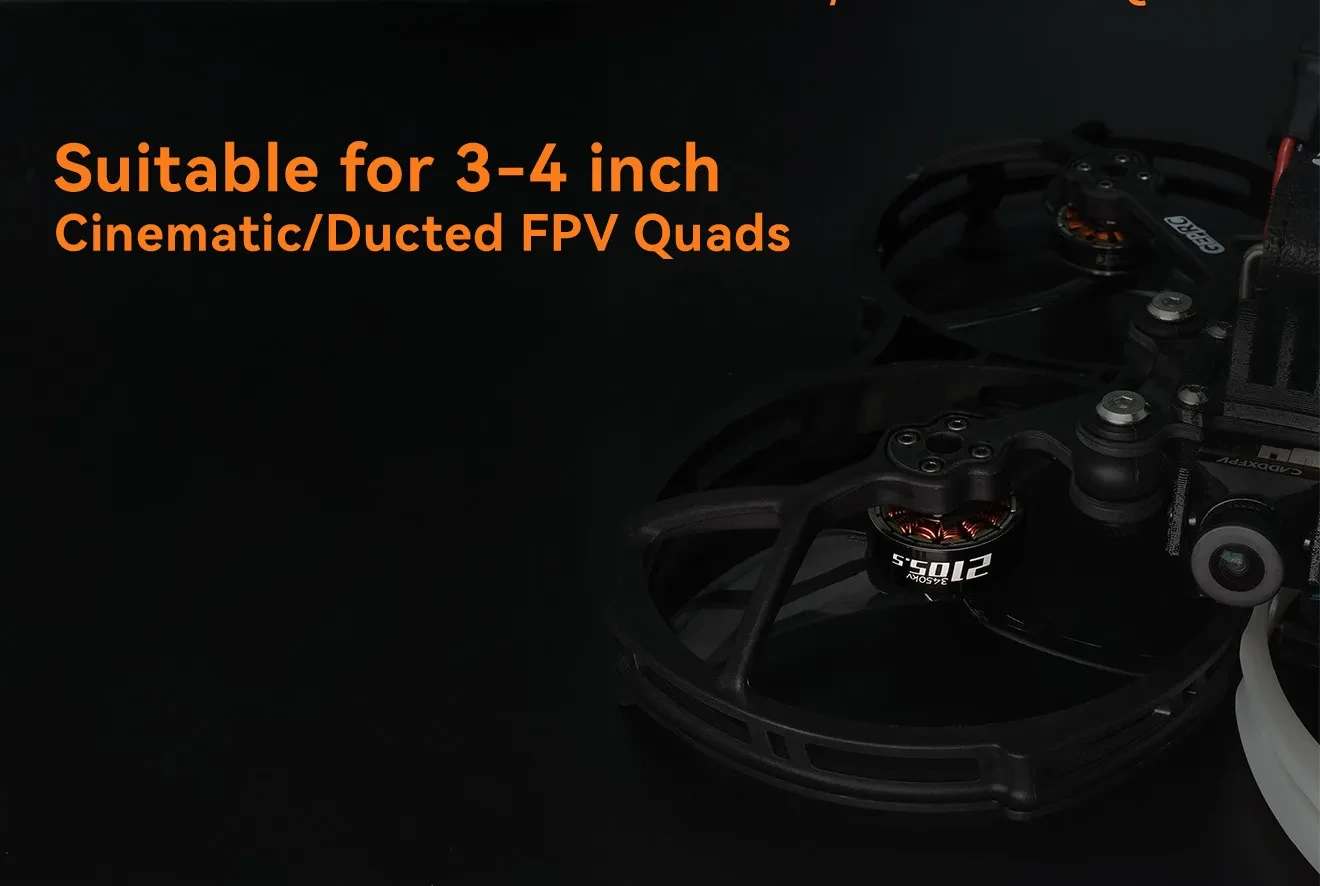

GEPRC SPEEDX2 2105.5 Motor is Suitable for 3-4 Inch FPV

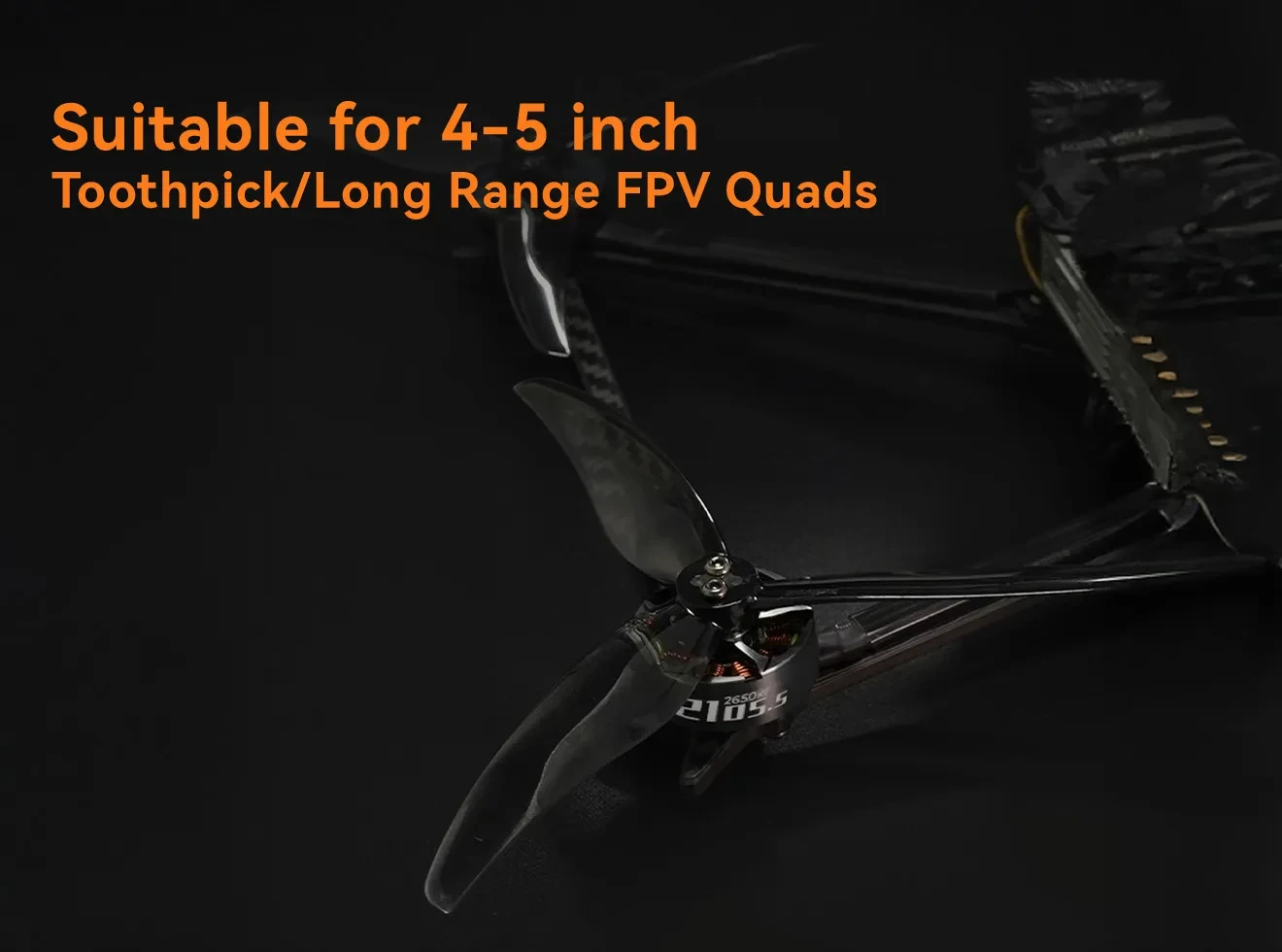

GEPRC SPEEDX2 2105.5 Motor is Suitable for 4-5 Inch FPV

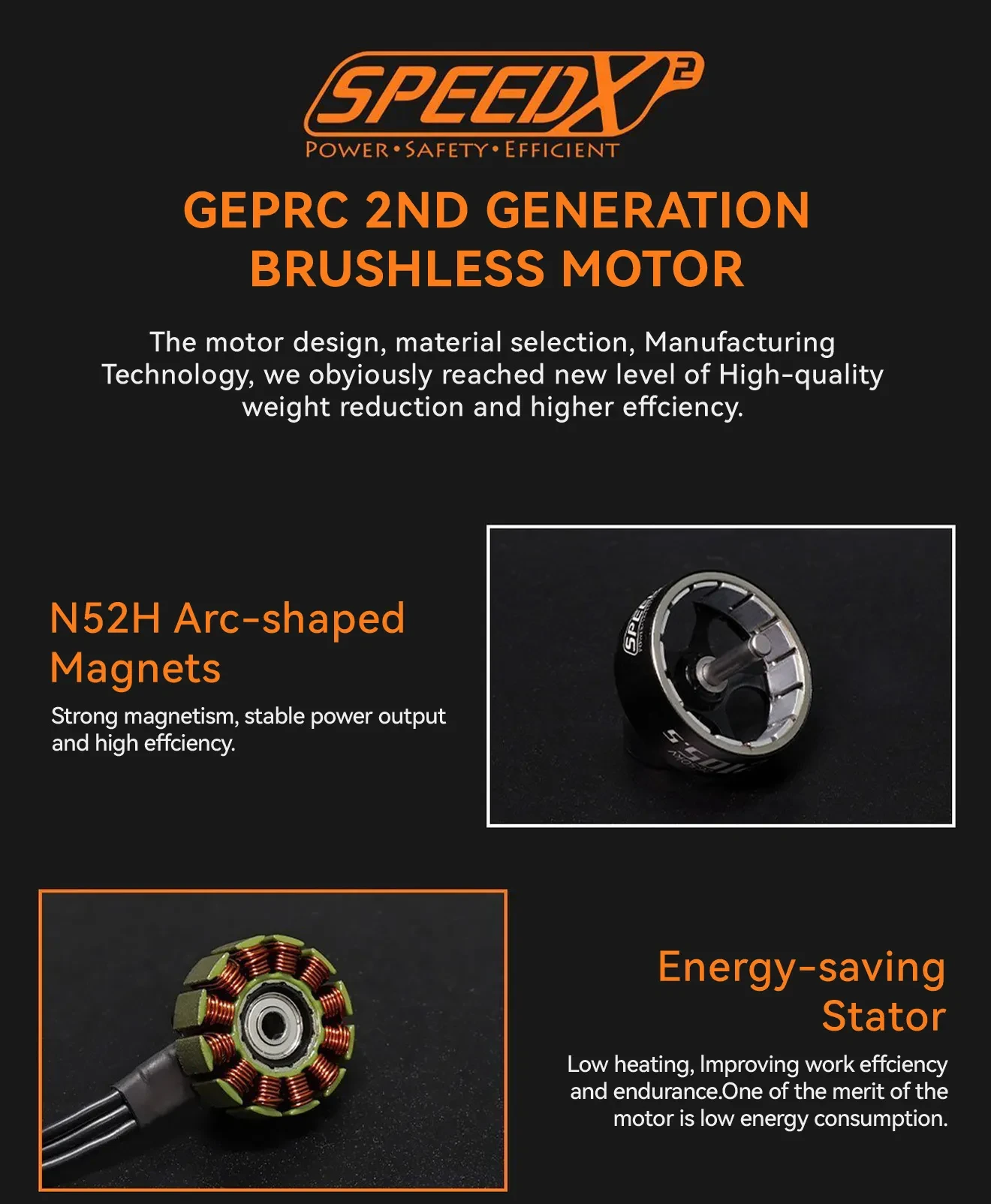

GEPRC SPEEDX2 2105.5 2ND Brushless Motor

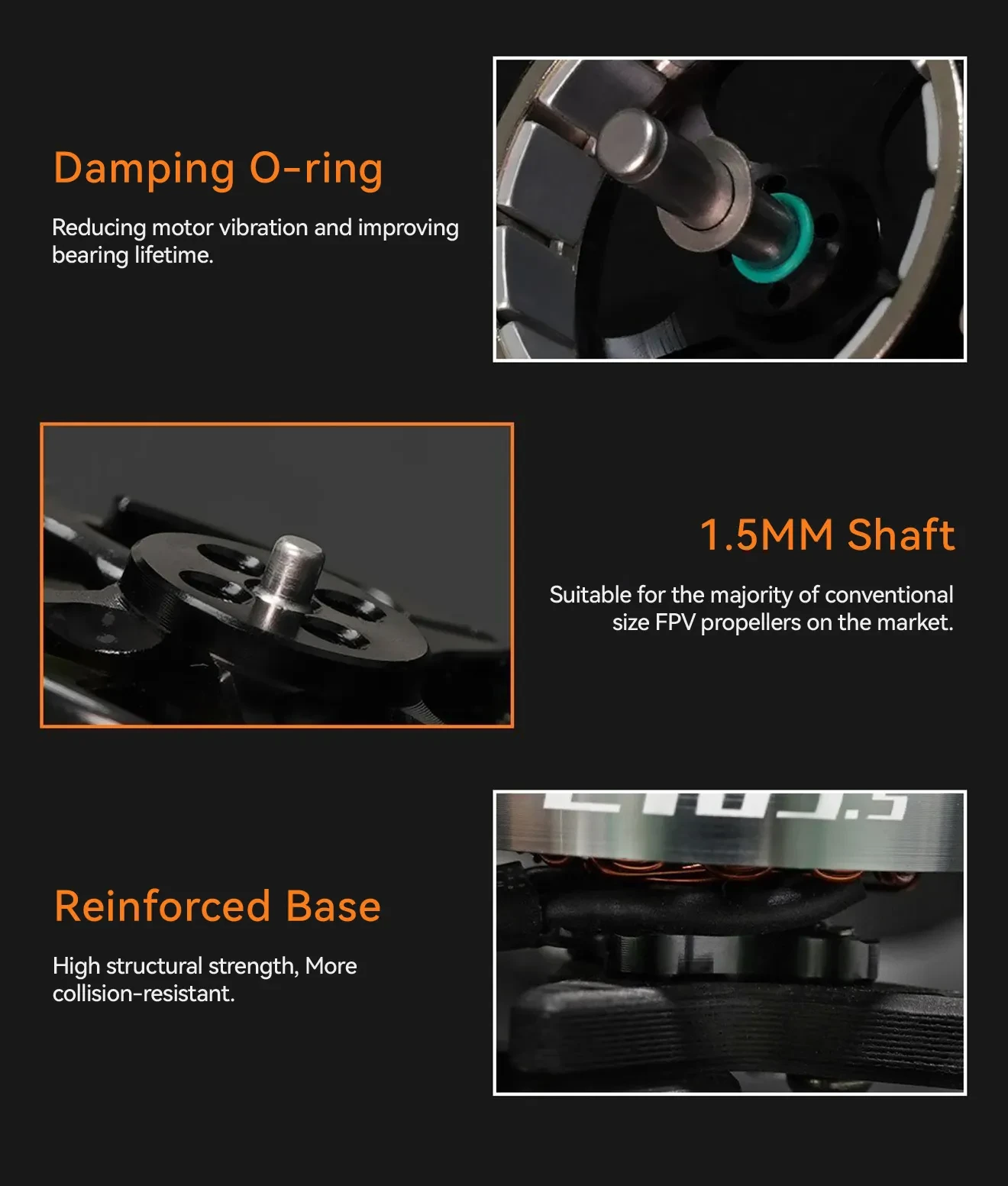

GEPRC SPEEDX2 2105.5 Motor Damping O-Ring

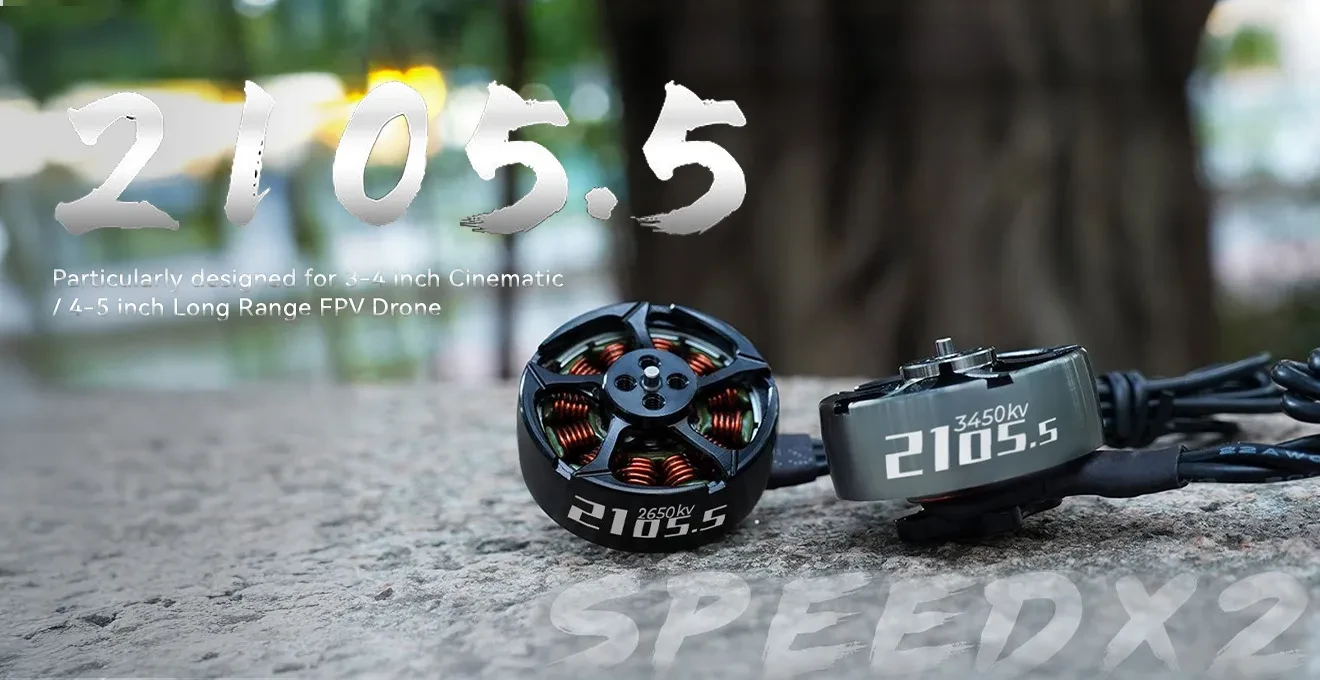

GEPRC SPEEDX2 2105.5 Motor Picture
GEPRC SPEEDX2 2105.5 3450KV Motor Picture

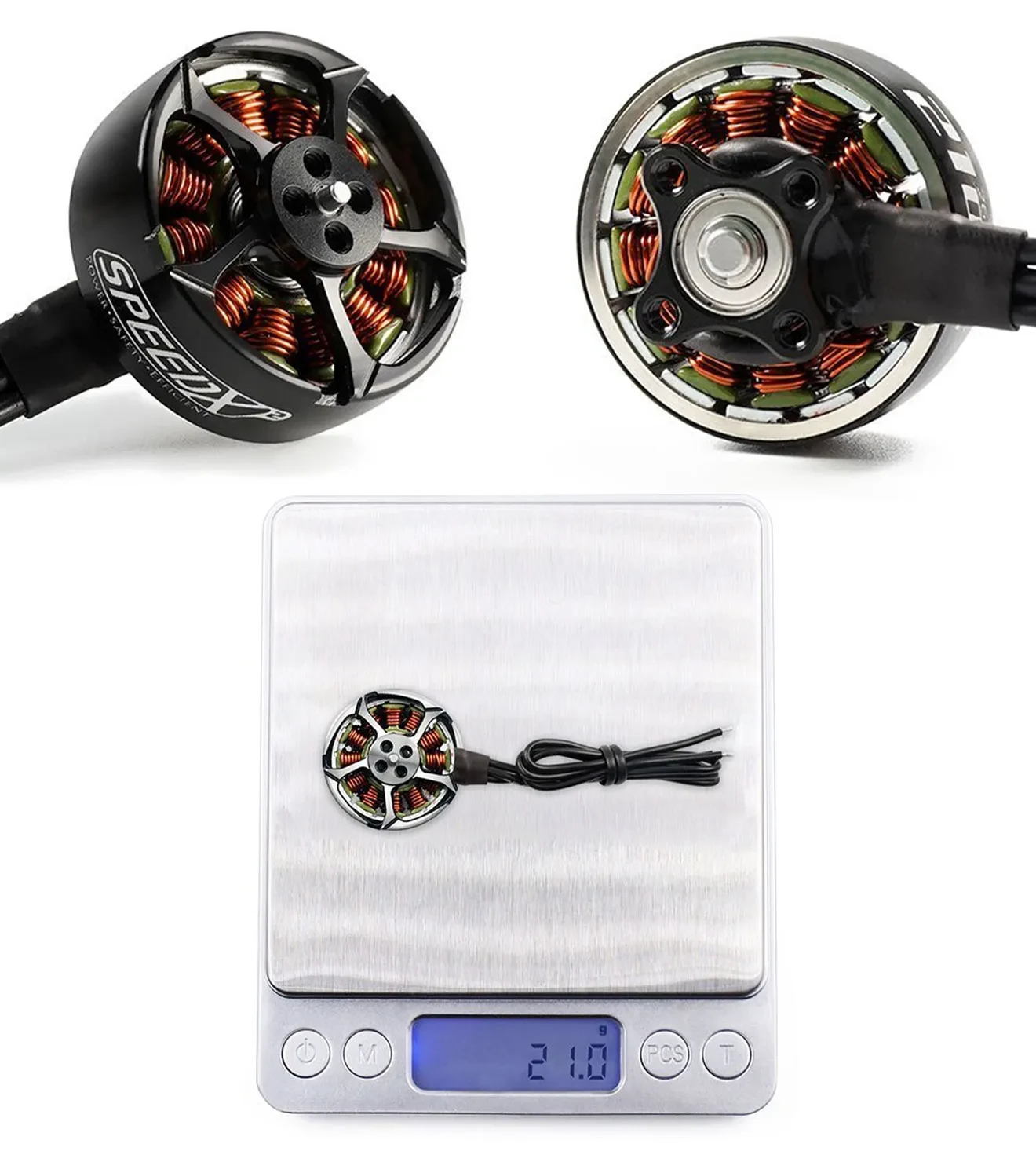

GEPRC SPEEDX2 2105.5 Black Motor Weight

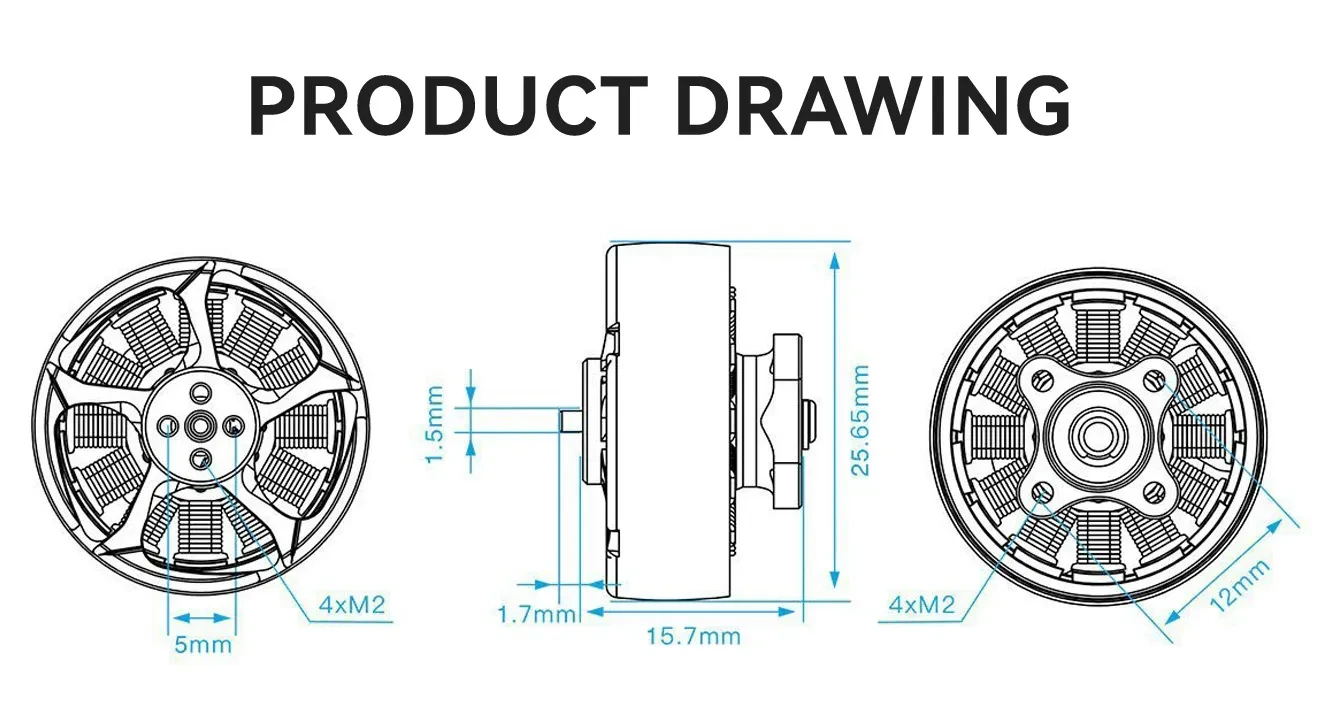

GEPRC SPEEDX2 2105.5 Motor Product Drawing

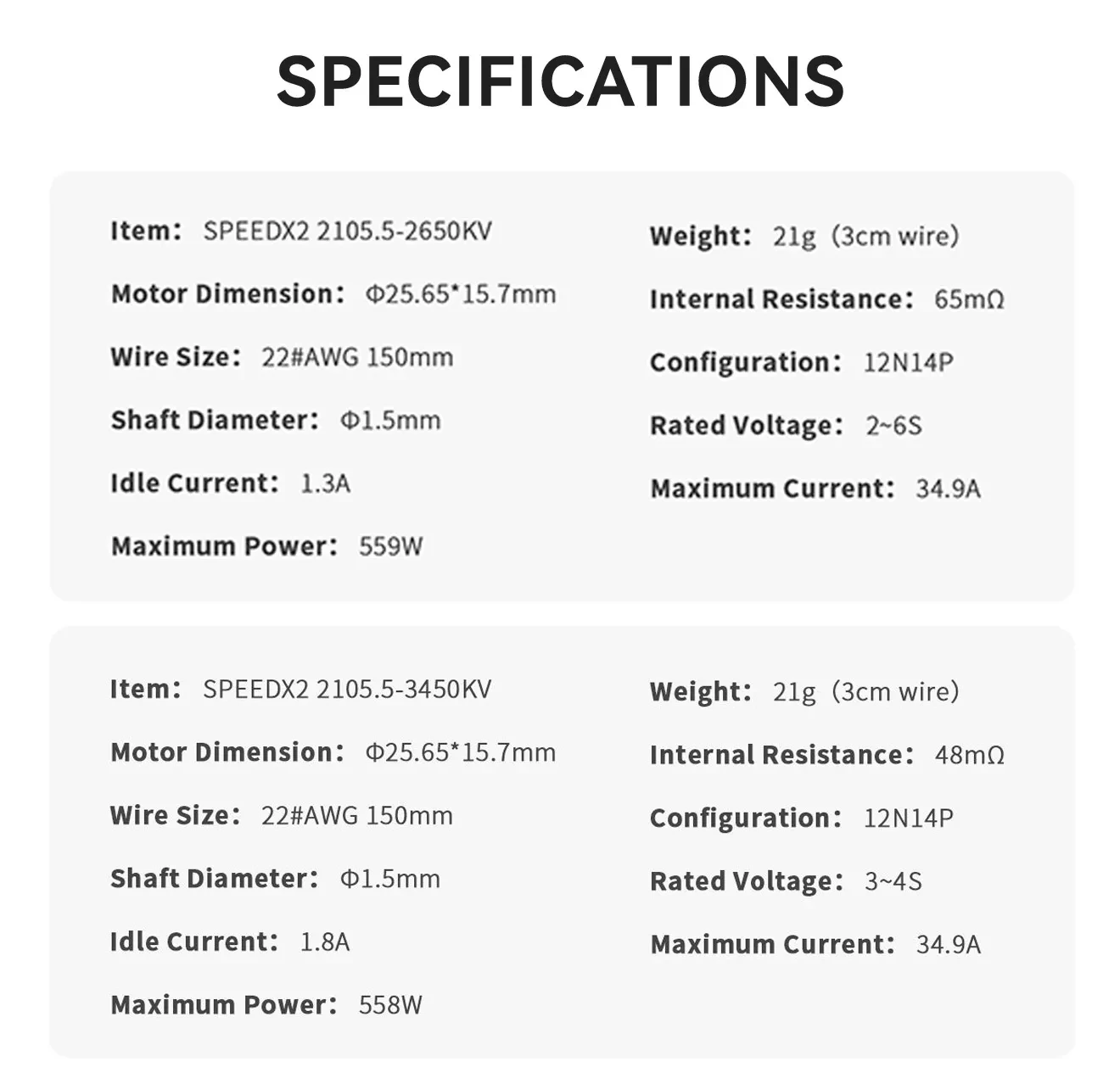

GEPRC SPEEDX2 2105.5 Motor Specifications

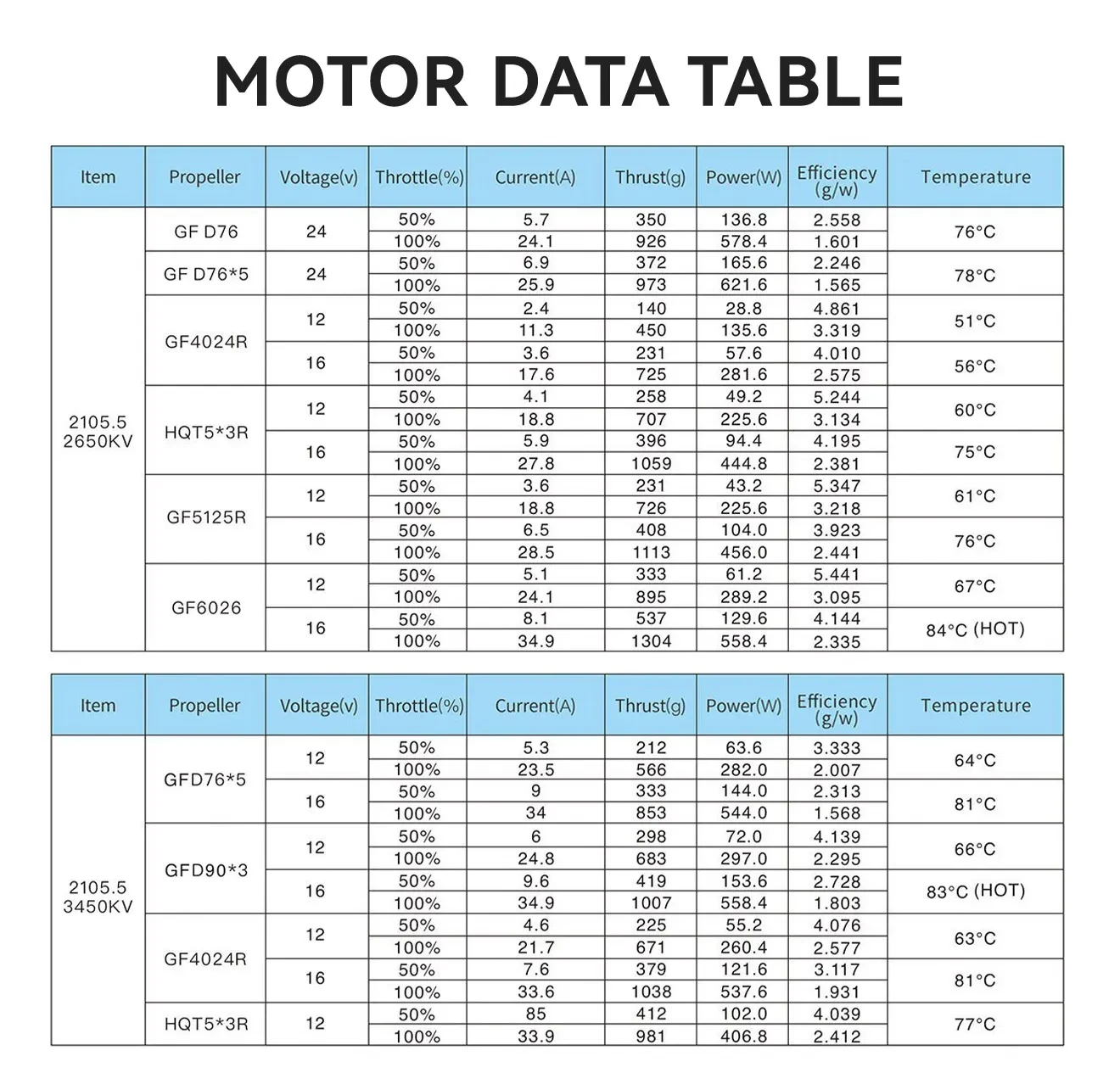

GEPRC SPEEDX2 2105.5 Motor Data
