CaddxFPV Walksnail Moonlight Kit - 4K FPV System

About Walksnail Moonlight Kit - 4K FPV System:


The Moonlight launched by Walksnail is a new high-definition FPV system. It has lossless performance and combines ultra-clear image quality of 4K/60 frames per second, excellent low-light detail capture capabilities, EIA and GyroFlow technology, and is equipped with many other functions, making it the top high-definition system choice in various application scenarios!

5.0
Sales:27Pcs
$189.00
$209.00
-10%
Coupon Available

●Cinematic 4K FPV – Captures 4K/60FPS video with EIS and Gyroflow for ultra-smooth footage.

●Exceptional Low-Light Performance – Equipped with a starlight sensor and ISO up to 25600 for clear night flights.

● Low Latency & High Bandwidth – 22ms latency with up to 150Mbps bitrate for crisp, real-time HD video.

● Versatile Compatibility – Works with Walksnail Avatar Goggles, Fat Shark Dominator HD, and Walksnail VRX.

● Durable & Lightweight – Compact 38.5g VTX with dual antennas and ND8 filter for optimized performance.

Learn more
MEPSKING new arrivals sales event buy more get more
Options (1)
walksnail moonlight kit 4K fpv system model1 flatwise
Avatar Moonlight Kit
Quantity
In Stock Expected ship within 5 days after order.
Free Shipping | For order over $99
2 Years Warranty | Hassle-free 24-month warranty
Easy Return and Exchange | Return within 30 days
Professional Support | 24-hour response
Payment | Every order you place with us is safe & secure
Share
Copy

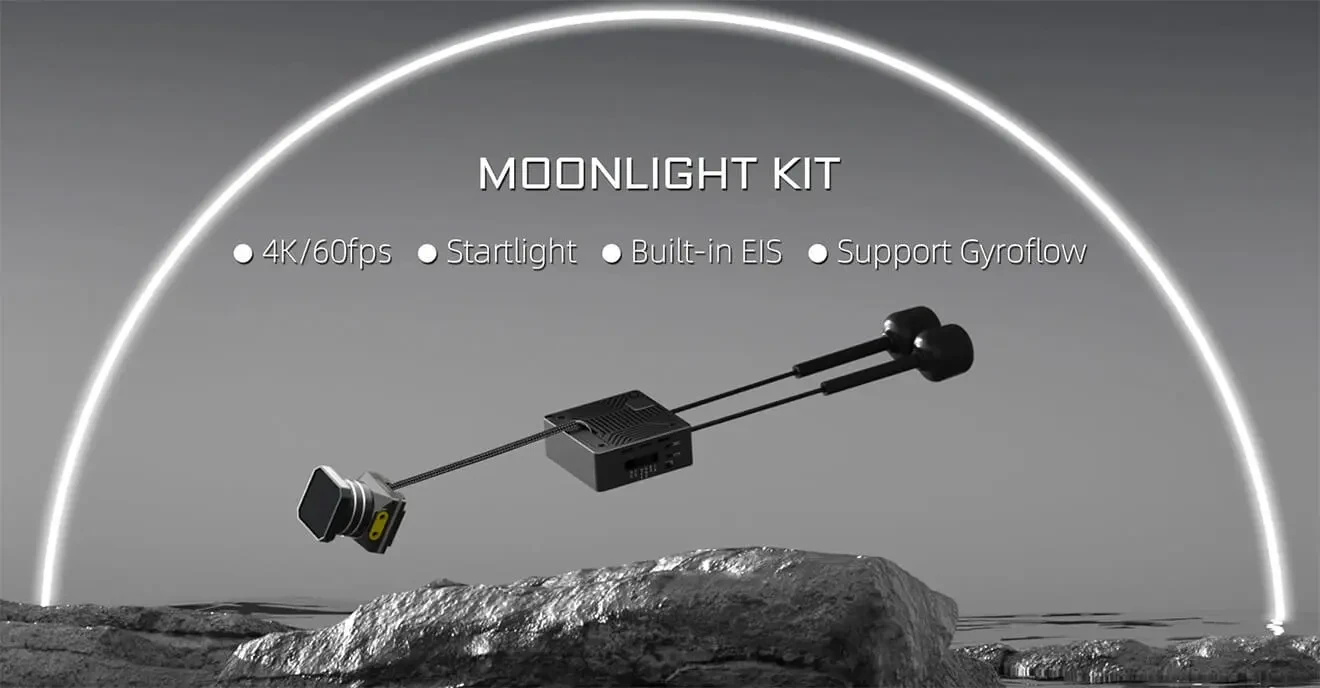

walksnail moonlight kit 4K fpv system features

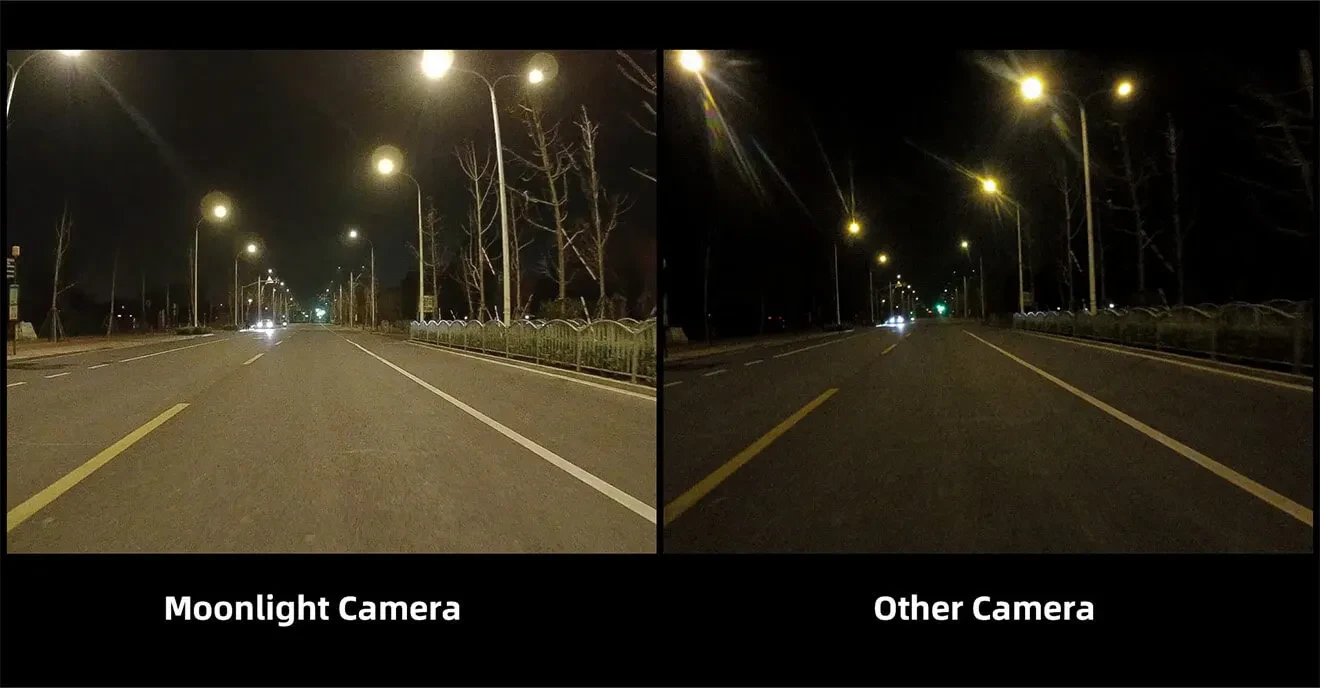

walksnail moonlight kit 4K fpv system area image quality

Features:


● Built-in EIS

● Support Gyroflow

● Dual Antennas

● Starlight Camera for low-light

● SD card slot

walksnail moonlight kit 4K fpv system 60fps
walksnail moonlight kit 4K fpv system video quality

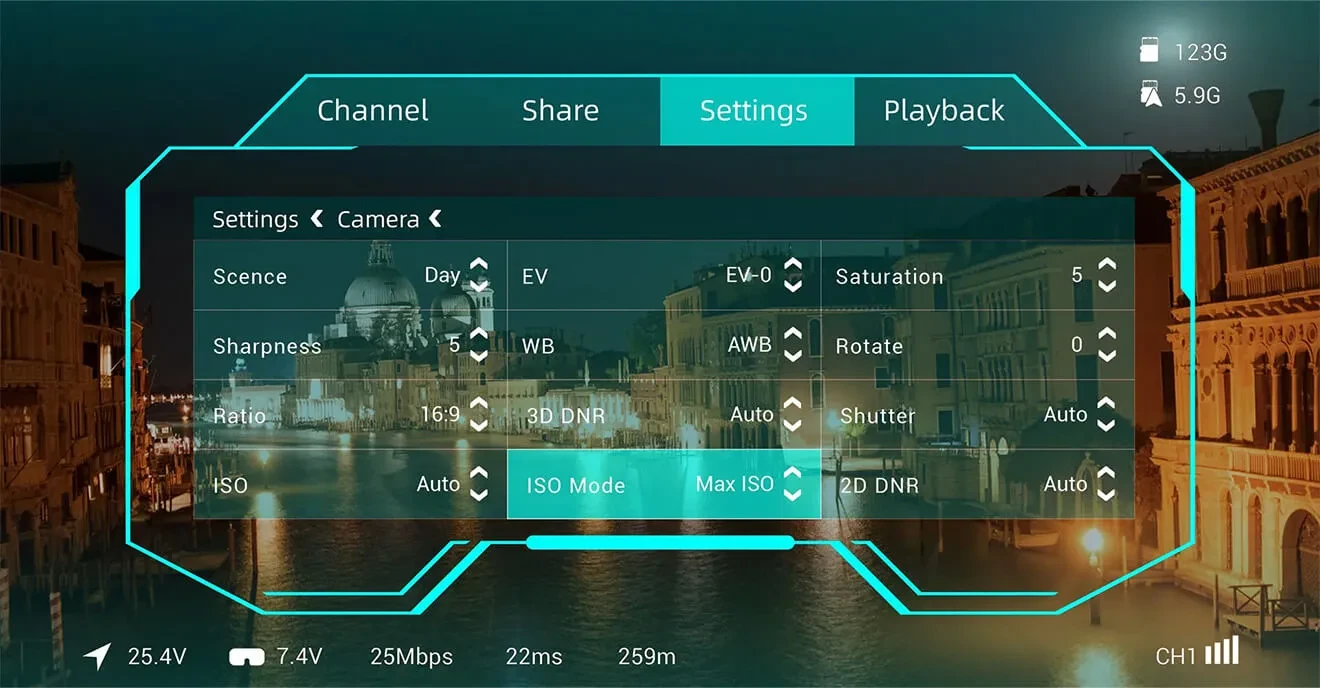

walksnail moonlight kit 4K fpv system manaul iso settings
walksnail moonlight kit 4K fpv system different shootig scenes

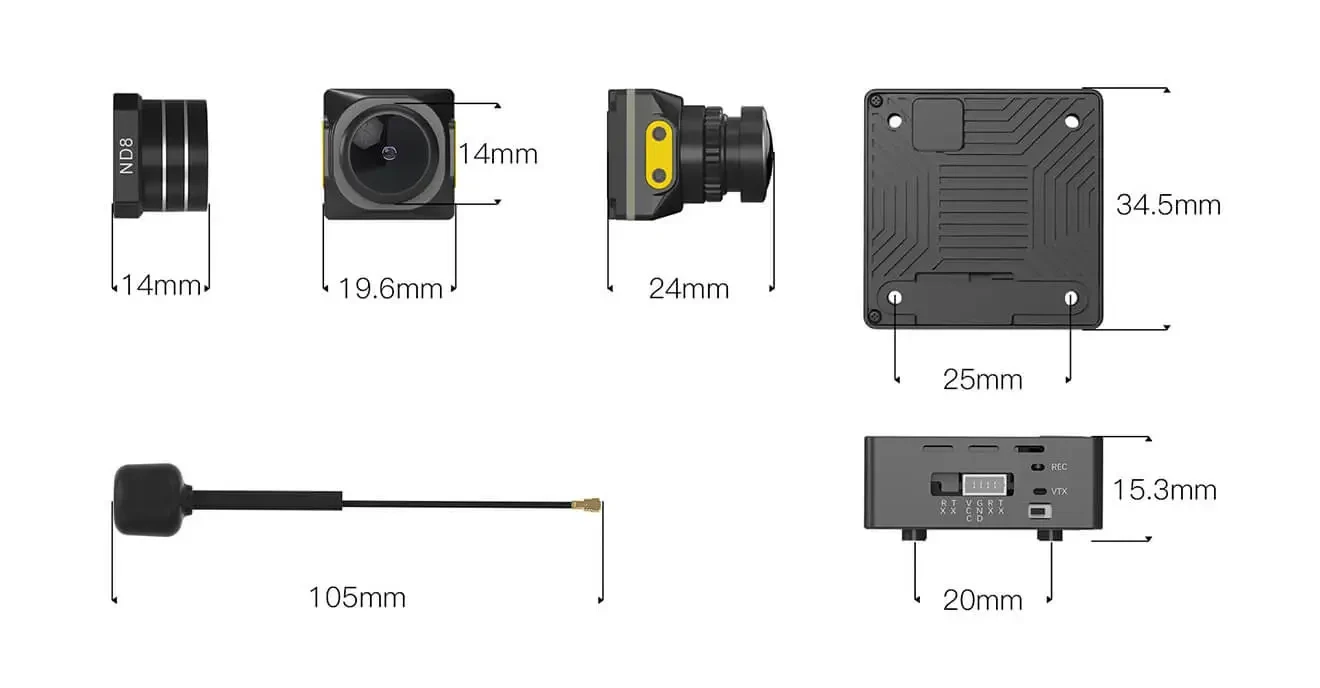

walksnail moonlight kit 4K fpv system nd8 filter

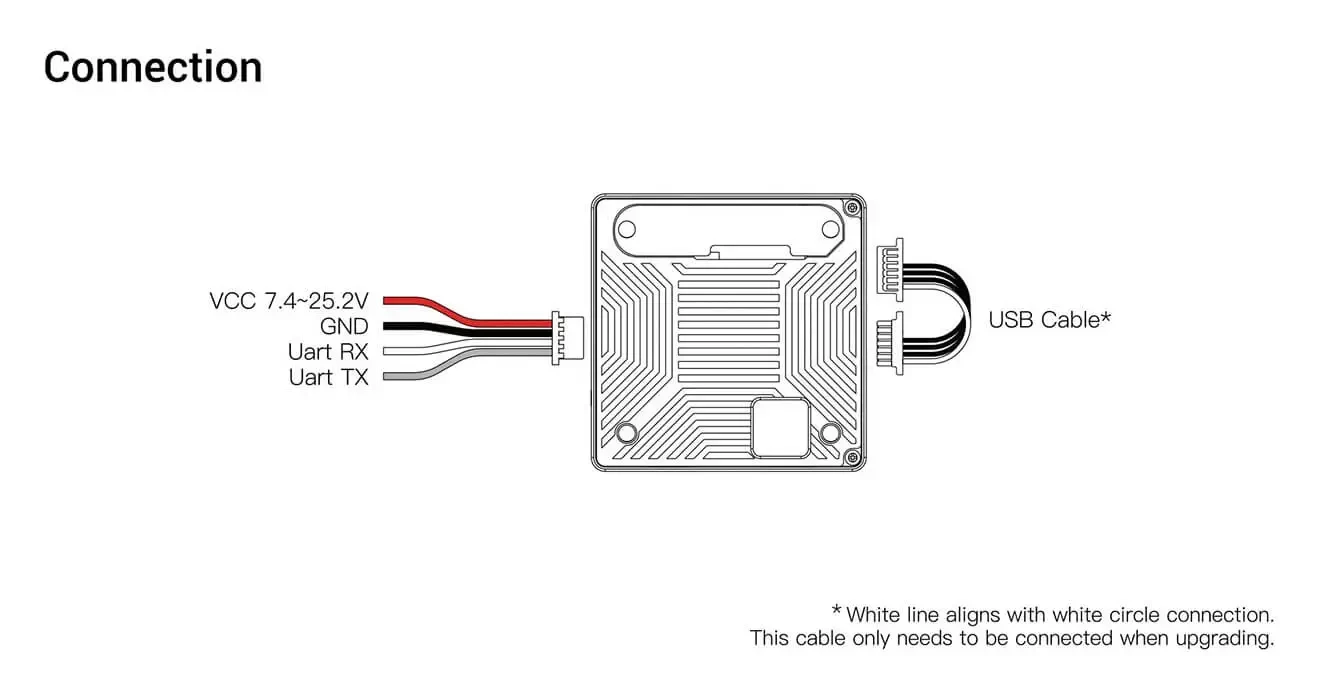

walksnail moonlight kit 4K fpv system connection

Specifications


● Firmware name: AvatarMoonlight_Sky_X.X.X

● Communication Frequency: 5.725-5.850GHz

● Transmitter Power (EIRP): FCC<30dBm; CE:<14dBm; SRRC:<20dBm; MIC<25dBm

● 1/O Interface: JST1.0*4(Power in)JST0.8*6(USB),Micro SD card Slot;IPEX-1

● Sensor: Starlight sensor

● FOV: Max 160°

● Aperture: F2.1

● Shutter: Rolling shutter

● ISO: 100-25600

● Recording resolution: 4K@30/60fps,2.7K@30/60fps,1080p@100/ 60fps,720p@60fps

● Max Mbps: 150Mbps

● Video format: MP4 (H.264)

● 3D DNR: Support

● Gyroflow: Support

● Built-in EIS: Support

● Wide Power Input: 7.4V-25.2V

● Power consumption: 12V@1.4A, 8V@2.2A

● Memory card type: U3 MicroSD, Max 256G

● Camera size: 19.6mm*19mm*24mm

● VTX size: 15.3mm*34.5mm*34.5mm

● VTX Installation hole distance: 20*20mm/25*25mm (M2)

● Weight: 38.5g(Antenna not included)

● OSD: Canvas mode

● Latency: Average delay 22ms

● Antenna: 2 (IPEX)

● Filter: ND8


VTX ANTENNA

● Polarization: LHCP

● Frequency range: 5600MHz-6000MHz

● Average Gain: 1.9dBi

● VSWR: <1.5

● Input Impedance: 50Ω

● Interface: IPEX-1

● Dimension: R15 X 45mm (without cable)

● Weight: 2g

Recommendations

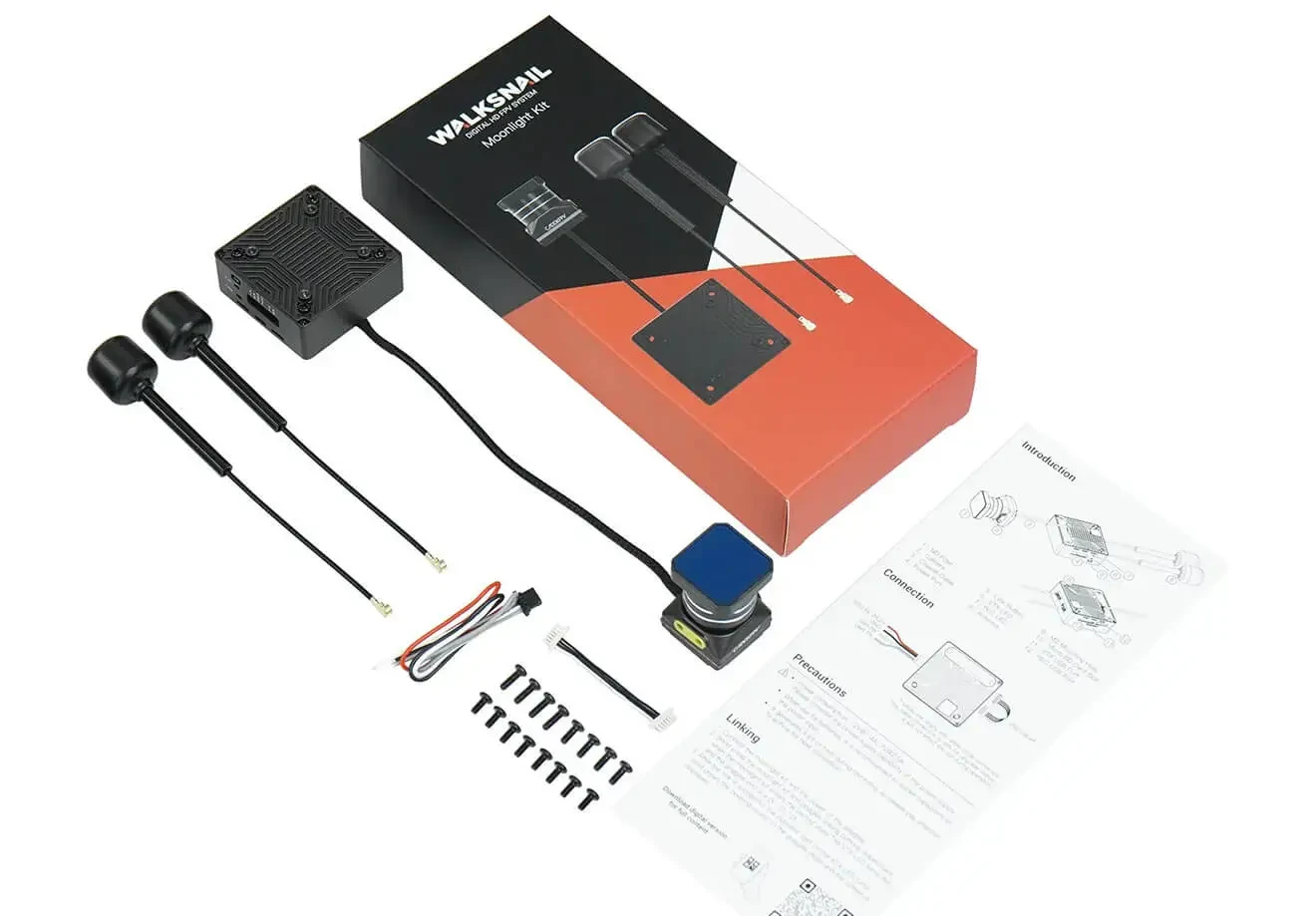

Package Included

● 1x Walksnail Moonlight Kit w/ VTX Unit + Camera

● 1x Mounting Hardware

● 1x Wire Harness

● 1x ND8 Filter

● 2x Antenna

walksnail moonlight kit 4K fpv system nd8 packing list
Download
Zeus-nano-350mW-VTX .zip
0.01MB
